ACS71240LLCBTR-030B3 - Allegro Microsystems

Description: Automotive-Grade, Galvanically Isolated Current Sensor IC With Common-Mode Field Rejection And Overcurrent Detection

Download ACS71240LLCBTR-030B3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

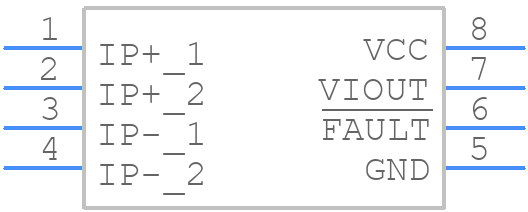

ACS71240LLCBTR-030B3 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS71240LLCBTR-030B3 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LC 8-pin SOIC
click to zoom
3D Models
ACS71240LLCBTR-030B3 - Allegro Microsystems - 3D model - Small Outline Packages - LC 8-pin SOIC
click to zoom

ACS71240LLCBTR-030B3 Details

  • Manufacturer Part Number:

    ACS71240LLCBTR-030B3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACS71240LLCBTR-030B3 Frequently Asked Questions (FAQs)

  • The ACS71240LLCBTR-030B3 can measure currents up to ±30A, with an output sensitivity of 185 mV/A.
  • The ACS71240LLCBTR-030B3 has a typical accuracy of ±1.5% at room temperature, and ±2.5% over the entire operating temperature range.
  • The ACS71240LLCBTR-030B3 has a bandwidth of 80 kHz, making it suitable for high-frequency current measurements.
  • Yes, the ACS71240LLCBTR-030B3 has a high immunity to external magnetic fields, with a typical rejection ratio of 100 dB at 50/60 Hz.
  • Yes, the ACS71240LLCBTR-030B3 is rated for operation from -40°C to 150°C, making it suitable for high-temperature applications.
