ACS71240LLCBTR-045B5 - Allegro Microsystems

Description: Automotive-Grade, Galvanically Isolated Current Sensor IC With Common-Mode Field Rejection And Overcurrent Detection

Download ACS71240LLCBTR-045B5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

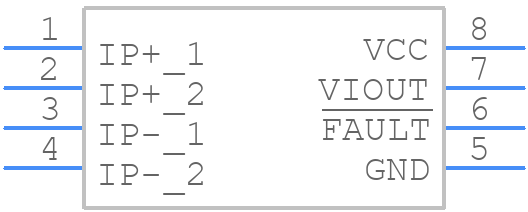

ACS71240LLCBTR-045B5 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS71240LLCBTR-045B5 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LC 8-pin SOIC
click to zoom
3D Models
ACS71240LLCBTR-045B5 - Allegro Microsystems - 3D model - Small Outline Packages - LC 8-pin SOIC
click to zoom

ACS71240LLCBTR-045B5 Details

  • Manufacturer Part Number:

    ACS71240LLCBTR-045B5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACS71240LLCBTR-045B5 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS71240LLCBTR-045B5 is -40°C to 150°C.
  • Calibration of the ACS71240LLCBTR-045B5 involves applying a known current to the device and adjusting the output voltage to match the expected value. The device should be calibrated at multiple points to ensure accuracy across the entire operating range.
  • Temperature changes can affect the accuracy of the ACS71240LLCBTR-045B5. The device has a temperature coefficient of ±0.1% per °C, which means that the output voltage will change by ±0.1% for every 1°C change in temperature.
  • To minimize the effects of EMI, use a shielded cable to connect the ACS71240LLCBTR-045B5 to the microcontroller or other circuitry. Additionally, use a common-mode choke or ferrite bead to filter out high-frequency noise.
  • The recommended PCB layout for the ACS71240LLCBTR-045B5 involves placing the device close to the current-carrying conductor, using a ground plane to reduce noise, and keeping the output traces short and shielded.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS71240LLCBTR-045B5 Overview

Use the download button to access the ACS71240LLCBTR-045B5 schematic symbol, PCB footprint, and 3D model.
