ACS71240LLCBTR-050U5 - Allegro Microsystems

Description: Automotive-Grade, Galvanically Isolated Current Sensor IC With Common-Mode Field Rejection And Overcurrent Detection

Download ACS71240LLCBTR-050U5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

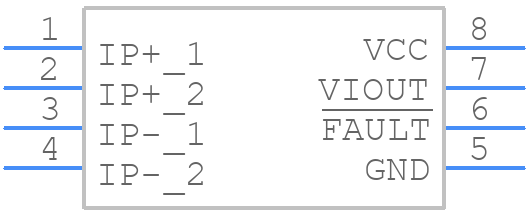

ACS71240LLCBTR-050U5 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS71240LLCBTR-050U5 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LC 8-pin SOIC
click to zoom
3D Models
ACS71240LLCBTR-050U5 - Allegro Microsystems - 3D model - Small Outline Packages - LC 8-pin SOIC
click to zoom

ACS71240LLCBTR-050U5 Details

  • Manufacturer Part Number:

    ACS71240LLCBTR-050U5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ACS71240LLCBTR-050U5 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS71240LLCBTR-050U5 is -40°C to 150°C.
  • The ACS71240LLCBTR-050U5 does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the supply voltage. However, it's recommended to follow the application note AN26941 from Allegro MicroSystems for proper usage and layout guidelines.
  • The ACS71240LLCBTR-050U5 can measure currents up to ±50A. However, it's recommended to derate the current measurement range based on the application's temperature and other environmental factors.
  • The ACS71240LLCBTR-050U5 has a bandwidth of 80 kHz, making it suitable for measuring currents up to 80 kHz. However, for higher frequency measurements, it's recommended to use a different device or consult with Allegro MicroSystems for custom solutions.
  • The ACS71240LLCBTR-050U5 has a high immunity to external magnetic fields due to its differential sensing architecture. However, it's still recommended to follow proper PCB layout and shielding guidelines to minimize external interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS71240LLCBTR-050U5 Overview

Use the download button to access the ACS71240LLCBTR-050U5 schematic symbol, PCB footprint, and 3D model.
