ACS712ELCTR-05B-T - Allegro Microsystems

Description: Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS712ELCTR-05B-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

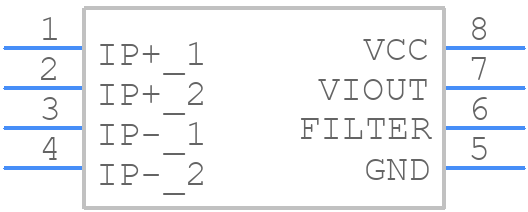

Symbol
ACS712ELCTR-05B-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS712ELCTR-05B-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead SOIC
click to zoom
3D Models
ACS712ELCTR-05B-T - Allegro Microsystems - 3D model - Small Outline Packages - 8-Lead SOIC
click to zoom

ACS712ELCTR-05B-T Details

  • Manufacturer Part Number:

    ACS712ELCTR-05B-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS712ELCTR-05B-T Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The sensitivity of the ACS712ELCTR-05B-T is typically 185 mV/A. You can calculate the output voltage by multiplying the sensitivity by the input current.
  • The bandwidth of the ACS712ELCTR-05B-T is 80 kHz. This means that the device can accurately measure currents up to 80 kHz.
  • Yes, the ACS712ELCTR-05B-T can be used to measure AC currents. However, the device is optimized for DC current measurement, and the accuracy may degrade at high frequencies.
  • You can use a low-pass filter or a band-pass filter to filter out noise and interference. Additionally, you can use shielding and grounding techniques to minimize electromagnetic interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS712ELCTR-05B-T Overview

Use the download button to access the ACS712ELCTR-05B-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Sensors/Transducers
