ACS712ELCTR-20A-T - Allegro Microsystems

Description: Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS712ELCTR-20A-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

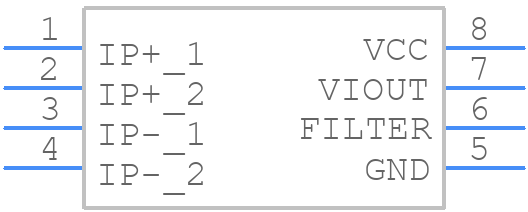

Symbol
ACS712ELCTR-20A-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS712ELCTR-20A-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - 8 SOICN
click to zoom
3D Models
ACS712ELCTR-20A-T - Allegro Microsystems - 3D model - Small Outline Packages - 8 SOICN
click to zoom

ACS712ELCTR-20A-T Details

  • Manufacturer Part Number:

    ACS712ELCTR-20A-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS712ELCTR-20A-T Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The output voltage of the ACS712ELCTR-20A-T is a analog voltage that varies in proportion to the input current. You can use an ADC to convert the analog voltage to a digital signal, or use a comparator to detect specific current levels.
  • The bandwidth of the ACS712ELCTR-20A-T is typically 80 kHz, but it can be adjusted by adding an external capacitor between the FILTER pin and GND.
  • The ACS712ELCTR-20A-T does not require calibration. It is factory-calibrated and provides a high degree of accuracy. However, you may need to adjust the output voltage to match your specific application requirements.
  • The ACS712ELCTR-20A-T has a temperature range of -40°C to 150°C. The device's accuracy and sensitivity may be affected by temperature changes, but it is designed to provide reliable operation over the specified temperature range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS712ELCTR-20A-T Overview

Use the download button to access the ACS712ELCTR-20A-T schematic symbol, PCB footprint, and 3D model.
