ACS712TELC-20A - ALTIUM

Description: Fully Integrated, Hall Effect-Based Linear Current Sensor IC with 2.1 kVRMS Isolation and a Low-Resistance Current Conductor

Download ACS712TELC-20A Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ACS712TELC-20A model

Email notifications will be applied after download.

Send part feedback

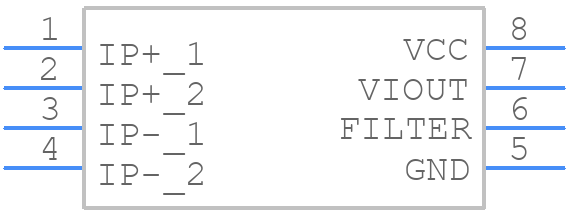

Symbol

ACS712TELC-20A - ALTIUM - PCB symbol

PCB Footprints

ACS712TELC-20A - ALTIUM PCB footprint - Small Outline Packages - Small Outline Packages - ACS712TELC-20A

3D Models

ACS712TELC-20A - ALTIUM - 3D model - Small Outline Packages - ACS712TELC-20A

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACS712TELC-20A
Part Number ACS712TELC-20A
Manufacturer ALTIUM
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - ACS712TELC-20A
Released Date Sep 16, 2024
Last Modified Date Sep 16, 2024 5:50 AM UTC
Pinout / Pin List Click Here (Member Only)

ACS712TELC-20A Details

Manufacturer Part Number:
ACS712TELC-20A
Manufacturer:
Altium

Trust Checks

Community Provided

System Verified

Community Approved

ACS712TELC-20A Overview

Use the download button to access the ACS712TELC-20A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Fixed Resistors
