ACS713ELCTR-20A-T - Allegro Microsystems

Description: Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS713ELCTR-20A-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

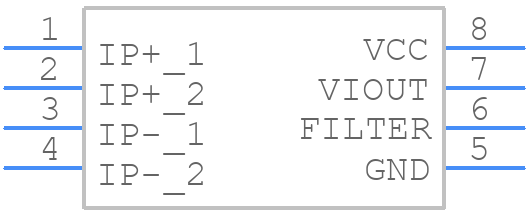

Symbol
ACS713ELCTR-20A-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS713ELCTR-20A-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - ACS713ELCTR-20A-T
click to zoom
3D Models
ACS713ELCTR-20A-T - Allegro Microsystems - 3D model - Small Outline Packages - ACS713ELCTR-20A-T
click to zoom

ACS713ELCTR-20A-T Details

  • Manufacturer Part Number:

    ACS713ELCTR-20A-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

ACS713ELCTR-20A-T Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The output voltage of the ACS713ELCTR-20A-T is proportional to the input current. The output voltage can be calculated using the sensitivity specification in the datasheet, which is typically 185 mV/A.
  • The bandwidth of the ACS713ELCTR-20A-T is typically 80 kHz. This means that the device can accurately measure currents with frequencies up to 80 kHz.
  • Yes, the ACS713ELCTR-20A-T can be used to measure AC currents. However, the device is optimized for DC current measurement, and the accuracy may degrade at high frequencies.
  • The ACS713ELCTR-20A-T's accuracy can be affected by temperature. The device has a specified temperature range of -20°C to 85°C, and the accuracy may degrade outside of this range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS713ELCTR-20A-T Overview

Use the download button to access the ACS713ELCTR-20A-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Signal Circuits
