ACS714ELCTR-05B-T - Allegro Microsystems

Description: Automotive Grade, Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS714ELCTR-05B-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

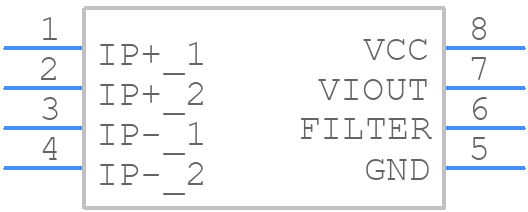

Symbol
ACS714ELCTR-05B-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS714ELCTR-05B-T - Allegro Microsystems PCB footprint - Other - Other - LC,8-pin SOIC
click to zoom
3D Models
ACS714ELCTR-05B-T - Allegro Microsystems - 3D model - Other - LC,8-pin SOIC
click to zoom

ACS714ELCTR-05B-T Details

  • Manufacturer Part Number:

    ACS714ELCTR-05B-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS714ELCTR-05B-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS714ELCTR-05B-T is -40°C to 150°C.
  • The ACS714ELCTR-05B-T does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the supply voltage, and the sensitivity is fixed. However, you may need to adjust the gain and offset of your system to optimize performance.
  • The ACS714ELCTR-05B-T has a temperature coefficient of ±1.5% per °C, which means that the output voltage will vary by ±1.5% for every 1°C change in temperature. This can affect the accuracy of the device, especially in high-temperature applications.
  • The ACS714ELCTR-05B-T is designed to measure DC currents, but it can also be used to measure AC currents with some limitations. The device has a bandwidth of 80 kHz, which means it can measure AC currents up to 80 kHz. However, the accuracy may degrade at higher frequencies.
  • The ACS714ELCTR-05B-T can measure currents up to ±5 A, but the maximum current that can be measured accurately depends on the device's sensitivity and the system's noise floor. Typically, the device can measure currents up to ±4 A with high accuracy.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS714ELCTR-05B-T Overview

Use the download button to access the ACS714ELCTR-05B-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Signal Circuits
