ACS714ELCTR-20A-T - Allegro Microsystems

Description: Automotive Grade, Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS714ELCTR-20A-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

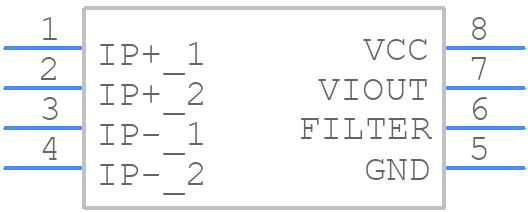

ACS714ELCTR-20A-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS714ELCTR-20A-T - Allegro Microsystems PCB footprint - Other - Other - LC,8-pin SOIC
click to zoom
3D Models
ACS714ELCTR-20A-T - Allegro Microsystems - 3D model - Other - LC,8-pin SOIC
click to zoom

ACS714ELCTR-20A-T Details

  • Manufacturer Part Number:

    ACS714ELCTR-20A-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS714ELCTR-20A-T Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The output voltage of the ACS714ELCTR-20A-T is a analog voltage that varies linearly with the input current. You can use an ADC to convert the analog voltage to a digital signal, or use a comparator to detect specific current levels.
  • The response time of the ACS714ELCTR-20A-T is typically 1-2 microseconds. This means that the device can accurately measure current changes that occur in 1-2 microseconds or more.
  • The ACS714ELCTR-20A-T is designed to measure DC currents, but it can also be used to measure AC currents with some limitations. The device can measure AC currents up to 50 kHz, but the output voltage will be a rectified and filtered version of the AC current waveform.
  • The ACS714ELCTR-20A-T does not require calibration. The device is factory-calibrated and provides an accurate output voltage that is proportional to the input current. However, you may need to adjust the gain and offset of the output voltage to match your specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS714ELCTR-20A-T Overview

Use the download button to access the ACS714ELCTR-20A-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Sensors/Transducers
