ACS714LLCTR-05B-T - Allegro Microsystems

Description: Automotive Grade, Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS714LLCTR-05B-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

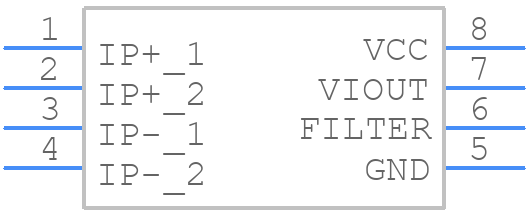

ACS714LLCTR-05B-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS714LLCTR-05B-T - Allegro Microsystems PCB footprint - Other - Other - LC,8-pin SOIC
click to zoom
3D Models
ACS714LLCTR-05B-T - Allegro Microsystems - 3D model - Other - LC,8-pin SOIC
click to zoom

ACS714LLCTR-05B-T Details

  • Manufacturer Part Number:

    ACS714LLCTR-05B-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS714LLCTR-05B-T Frequently Asked Questions (FAQs)

  • The ACS714LLCTR-05B-T can measure currents up to ±5A, with a sensitivity of 185 mV/A.
  • The ACS714LLCTR-05B-T has a typical accuracy of ±1.5% at room temperature, and ±2.5% over the entire operating temperature range.
  • The ACS714LLCTR-05B-T has a bandwidth of 80 kHz, making it suitable for measuring currents in high-frequency applications.
  • Yes, the ACS714LLCTR-05B-T has a built-in shield to minimize the effects of external magnetic fields, ensuring accurate current measurements.
  • Yes, the ACS714LLCTR-05B-T is rated for operation from -20°C to 85°C, making it suitable for use in a wide range of industrial and automotive applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS714LLCTR-05B-T Overview

Use the download button to access the ACS714LLCTR-05B-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Sensors/Transducers
