ACS714LLCTR-20A-T - Allegro Microsystems

Description: Automotive Grade, Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS714LLCTR-20A-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

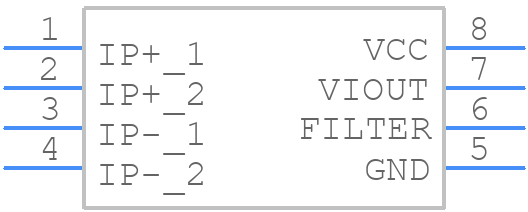

Symbol
ACS714LLCTR-20A-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS714LLCTR-20A-T - Allegro Microsystems PCB footprint - Other - Other - LC,8-pin SOIC
click to zoom
3D Models
ACS714LLCTR-20A-T - Allegro Microsystems - 3D model - Other - LC,8-pin SOIC
click to zoom

ACS714LLCTR-20A-T Details

  • Manufacturer Part Number:

    ACS714LLCTR-20A-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS714LLCTR-20A-T Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The output voltage of the ACS714LLCTR-20A-T is a differential output, so it requires a differential amplifier or a instrumentation amplifier to condition the signal before it can be processed by an ADC or other circuitry.
  • The ACS714LLCTR-20A-T has a temperature coefficient of ±1.5% per °C, which means that the output voltage will vary by ±1.5% for every degree Celsius change in temperature. This can affect the accuracy of the current measurement.
  • To filter out noise and interference, a low-pass filter with a cutoff frequency of around 100 kHz to 1 MHz can be used. Additionally, shielding the device and using a ground plane can help reduce electromagnetic interference.
  • The ACS714LLCTR-20A-T can measure currents from -20A to 20A. However, the device is optimized for currents between -10A and 10A, and the accuracy may degrade outside of this range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS714LLCTR-20A-T Overview

Use the download button to access the ACS714LLCTR-20A-T schematic symbol, PCB footprint, and 3D model.
