ACS714LLCTR-30A-T - Allegro Microsystems

Description: Automotive Grade, Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS714LLCTR-30A-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

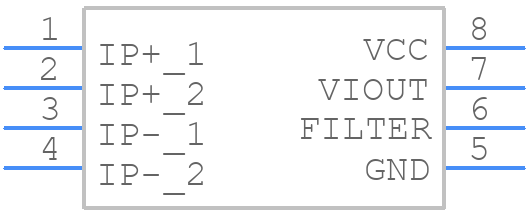

ACS714LLCTR-30A-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS714LLCTR-30A-T - Allegro Microsystems PCB footprint - Other - Other - LC,8-pin SOIC
click to zoom
3D Models
ACS714LLCTR-30A-T - Allegro Microsystems - 3D model - Other - LC,8-pin SOIC
click to zoom

ACS714LLCTR-30A-T Details

  • Manufacturer Part Number:

    ACS714LLCTR-30A-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS714LLCTR-30A-T Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The output voltage of the ACS714LLCTR-30A-T is a ratiometric output, meaning it is proportional to the supply voltage (VCC). The output voltage range is 0.5V to 4.5V, with 2.5V being the quiescent output voltage (no current flowing).
  • The bandwidth of the ACS714LLCTR-30A-T is 80 kHz. This means that the device can accurately measure currents up to 80 kHz.
  • To filter out noise and interference in the output signal, a low-pass filter with a cutoff frequency of around 10 kHz to 20 kHz can be used. This will help to remove high-frequency noise and interference.
  • The ACS714LLCTR-30A-T has a temperature range of -20°C to 85°C. The device's accuracy and sensitivity may be affected by temperature changes, so it's essential to consider temperature compensation in the system design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS714LLCTR-30A-T Overview

Use the download button to access the ACS714LLCTR-30A-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Signal Circuits
