Description:Automotive Grade, Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor
The maximum voltage that can be applied to the VCC pin is 5.5V. Exceeding this voltage may damage the device.
The output voltage of the ACS714LLCTR-50A-T is a differential output, so it's recommended to use a differential amplifier or an instrumentation amplifier to condition the signal before processing.
The ACS714LLCTR-50A-T has a temperature coefficient of ±1.5% per °C, which means that the output voltage will vary with temperature. It's essential to consider this when designing the system and to provide adequate temperature compensation if necessary.
The ACS714LLCTR-50A-T is designed to measure DC currents, but it can also be used to measure AC currents with some limitations. The device can measure AC currents up to 50 kHz, but the output voltage will be proportional to the RMS value of the current, not the peak value.
To ensure EMC, it's essential to follow proper PCB layout and design practices, such as using a ground plane, minimizing loop areas, and using shielding if necessary. Additionally, the ACS714LLCTR-50A-T has built-in electromagnetic interference (EMI) filters, but it's still important to follow proper design practices to minimize EMI.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS714LLCTR-50A-T Overview

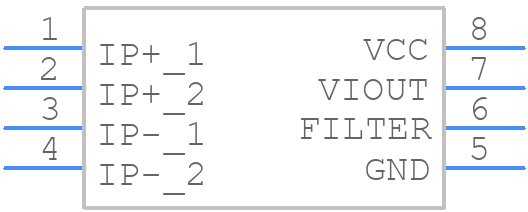

Use the download button to access the ACS714LLCTR-50A-T schematic symbol, PCB footprint, and 3D model.
