ACS715ELCTR-30A-T - Allegro Microsystems

Description: Automotive Grade, Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS715ELCTR-30A-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

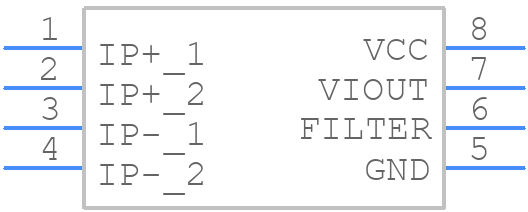

ACS715ELCTR-30A-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS715ELCTR-30A-T - Allegro Microsystems PCB footprint - Other - Other - LC,8-pin SOIC
click to zoom
3D Models
ACS715ELCTR-30A-T - Allegro Microsystems - 3D model - Other - LC,8-pin SOIC
click to zoom

ACS715ELCTR-30A-T Details

  • Manufacturer Part Number:

    ACS715ELCTR-30A-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    MATTE TIN

ACS715ELCTR-30A-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS715ELCTR-30A-T is -40°C to 150°C.
  • The ACS715ELCTR-30A-T has a typical accuracy of ±1.5% at 25°C, and ±2.5% over the entire operating temperature range.
  • The response time of the ACS715ELCTR-30A-T is typically 1 μs to 2 μs.
  • Yes, the ACS715ELCTR-30A-T is designed to be immune to external magnetic fields, with a typical immunity of up to 1000 Gauss.
  • Yes, the ACS715ELCTR-30A-T can measure both AC and DC currents, with a bandwidth of up to 80 kHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS715ELCTR-30A-T Overview

Use the download button to access the ACS715ELCTR-30A-T schematic symbol, PCB footprint, and 3D model.
