ACS715LLCTR-30A-T - Allegro Microsystems

Description: Automotive Grade, Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS715LLCTR-30A-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

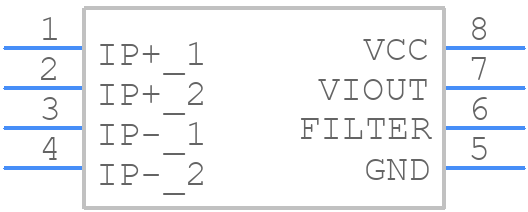

ACS715LLCTR-30A-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS715LLCTR-30A-T - Allegro Microsystems PCB footprint - Other - Other - LC,8-pin SOIC
click to zoom
3D Models
ACS715LLCTR-30A-T - Allegro Microsystems - 3D model - Other - LC,8-pin SOIC
click to zoom

ACS715LLCTR-30A-T Details

  • Manufacturer Part Number:

    ACS715LLCTR-30A-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS715LLCTR-30A-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS715LLCTR-30A-T is -40°C to 150°C.
  • The ACS715LLCTR-30A-T has a typical accuracy of ±1.5% at 25°C, and ±2.5% over the entire operating temperature range.
  • The response time of the ACS715LLCTR-30A-T is typically 1 μs to 2 μs.
  • Yes, the ACS715LLCTR-30A-T is designed to be immune to external magnetic fields, with a typical immunity of up to 1000 Gauss.
  • Yes, the ACS715LLCTR-30A-T can measure both AC and DC currents, with a bandwidth of up to 80 kHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS715LLCTR-30A-T Overview

Use the download button to access the ACS715LLCTR-30A-T schematic symbol, PCB footprint, and 3D model.
