ACS717KMATR-20B-T - Allegro Microsystems

Description: 3.3V Vcc Linear Current Sensor IC

Download ACS717KMATR-20B-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

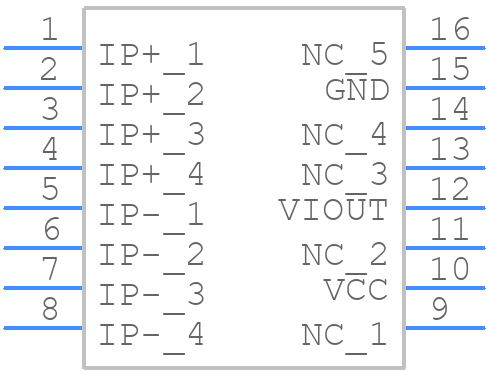

ACS717KMATR-20B-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS717KMATR-20B-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA
click to zoom
3D Models
ACS717KMATR-20B-T - Allegro Microsystems - 3D model - Small Outline Packages - MA
click to zoom

ACS717KMATR-20B-T Details

  • Manufacturer Part Number:

    ACS717KMATR-20B-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Additional Feature:

    IT HAVE SENSITIVITY OF 66 MV/A

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.65 mm

  • Body Length or Diameter:

    10.3 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Current-Max:

    7.5 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

ACS717KMATR-20B-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS717KMATR-20B-T is -40°C to 150°C.
  • The ACS717KMATR-20B-T does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the supply voltage, and the sensitivity is fixed. However, you may need to adjust the gain and offset of your system to optimize performance.
  • The bandwidth of the ACS717KMATR-20B-T is 120 kHz, making it suitable for most motor control and power monitoring applications.
  • Yes, the ACS717KMATR-20B-T is designed for high-current applications and can measure currents up to 50 A.
  • The ACS717KMATR-20B-T has built-in shielding to minimize the effects of external magnetic fields, but it is not completely immune. You may need to take additional measures to shield the device in high-magnetic-field environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS717KMATR-20B-T Overview

Use the download button to access the ACS717KMATR-20B-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Magnetic Field Sensors
