ACS718KMATR-20B-T - Allegro Microsystems

Description: 5V Vcc Linear Current Sensor In Hi-Isolation Package

Download ACS718KMATR-20B-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

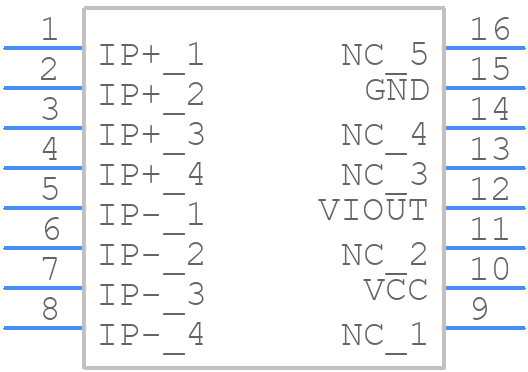

ACS718KMATR-20B-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS718KMATR-20B-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA
click to zoom
3D Models
ACS718KMATR-20B-T - Allegro Microsystems - 3D model - Small Outline Packages - MA
click to zoom

ACS718KMATR-20B-T Details

  • Manufacturer Part Number:

    ACS718KMATR-20B-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Additional Feature:

    IT HAVE SENSITIVITY OF 100 MV/A

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.65 mm

  • Body Length or Diameter:

    10.3 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Current-Max:

    9 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

ACS718KMATR-20B-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS718KMATR-20B-T is -40°C to 150°C.
  • To minimize noise and ensure accurate readings, it is recommended to follow Allegro's PCB layout guidelines, which include keeping the sense lines as short as possible, using a ground plane, and avoiding routing of digital signals near the sense lines.
  • The recommended capacitor value for the VCC bypass capacitor is 0.1 μF to 10 μF, with a voltage rating of at least 10 V.
  • Calibration of the ACS718KMATR-20B-T involves adjusting the zero-field offset and sensitivity to optimize performance. This can be done using Allegro's calibration procedure, which involves applying a known current to the device and adjusting the offset and sensitivity registers accordingly.
  • The maximum current that the ACS718KMATR-20B-T can measure is ±20 A.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS718KMATR-20B-T Overview

Use the download button to access the ACS718KMATR-20B-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Magnetic Field Sensors
