ACS720KLATR-65AB-T-4 - Allegro Microsystems

Description: High Accuracy Dual Fault Output High Isolation Ic

Download ACS720KLATR-65AB-T-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

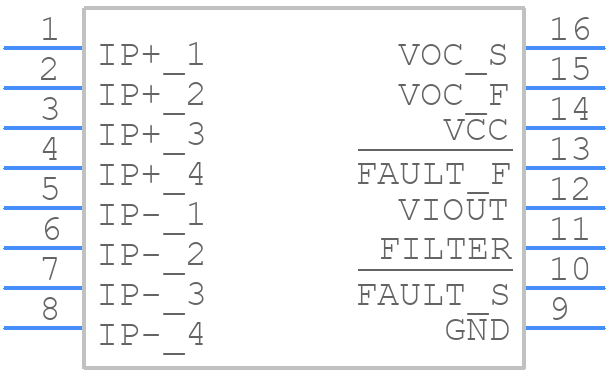

ACS720KLATR-65AB-T-4 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS720KLATR-65AB-T-4 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - Package LA, 16-pin SOICW-1
click to zoom
3D Models
ACS720KLATR-65AB-T-4 - Allegro Microsystems - 3D model - Small Outline Packages - Package LA, 16-pin SOICW-1
click to zoom

ACS720KLATR-65AB-T-4 Details

  • Manufacturer Part Number:

    ACS720KLATR-65AB-T-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Allegro MicroSystems LLC

  • Additional Feature:

    BODY HGT_MAX

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

ACS720KLATR-65AB-T-4 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS720KLATR-65AB-T-4 is -40°C to 150°C.
  • The ACS720KLATR-65AB-T-4 has an internal overcurrent detection circuit that limits the output current to prevent damage to the device in case of an overcurrent condition.
  • The typical response time for the ACS720KLATR-65AB-T-4 to detect a current fault is 1.5 μs.
  • Yes, the ACS720KLATR-65AB-T-4 can be used in high-voltage applications up to 420 Vrms.
  • The ACS720KLATR-65AB-T-4 has a typical current measurement accuracy of ±2.5% at 25°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS720KLATR-65AB-T-4 Overview

Use the download button to access the ACS720KLATR-65AB-T-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS72, or try a keyword search, such as Other Sensors/Transducers
