ACS720KLATR-65AB-T - Allegro Microsystems

Description: High Accuracy Dual Fault Output High Isolation Ic

Download ACS720KLATR-65AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

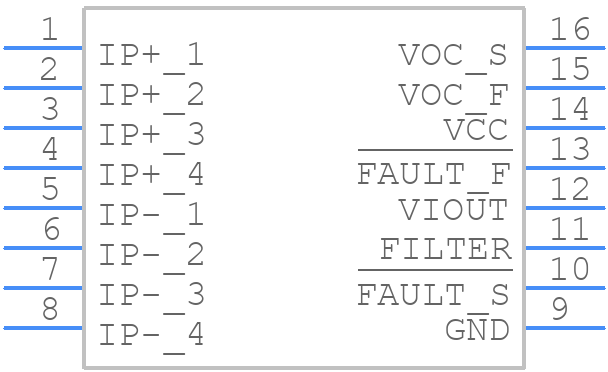

ACS720KLATR-65AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS720KLATR-65AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - 16 SOICW Package LA
click to zoom
3D Models
ACS720KLATR-65AB-T - Allegro Microsystems - 3D model - Small Outline Packages - 16 SOICW Package LA
click to zoom

ACS720KLATR-65AB-T Details

  • Manufacturer Part Number:

    ACS720KLATR-65AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Date Of Intro:

    2017-09-21

  • Manufacturer:

    Allegro MicroSystems LLC

  • Additional Feature:

    BODY HGT_MAX

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

ACS720KLATR-65AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS720KLATR-65AB-T is -40°C to 150°C.
  • The output voltage of the ACS720KLATR-65AB-T is ratiometric, meaning it scales with the supply voltage. You should use a voltage regulator to regulate the output voltage to ensure accurate measurements.
  • A good PCB layout for the ACS720KLATR-65AB-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the output traces to reduce noise and interference.
  • Calibration of the ACS720KLATR-65AB-T involves applying a known current to the device and adjusting the output voltage to match the expected value. You may need to use an external calibration resistor to achieve accurate results.
  • The typical response time of the ACS720KLATR-65AB-T is 2 μs, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS720KLATR-65AB-T Overview

Use the download button to access the ACS720KLATR-65AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS72, or try a keyword search, such as Other Sensors/Transducers
