The maximum operating temperature range for the ACS720KLATR-80AB-T is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within the -20°C to 85°C range for optimal performance and reliability.
The ACS720KLATR-80AB-T outputs a differential voltage signal that requires a differential amplifier or a instrumentation amplifier to condition the signal. The output voltage range is typically ±40 mV to ±120 mV, depending on the input current and the gain setting.
To ensure optimal performance and minimize noise, it's recommended to follow Allegro's PCB layout guidelines, which include keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the output traces. Additionally, use a low-ESR capacitor for decoupling and follow proper EMI/EMC design practices.
Calibration of the ACS720KLATR-80AB-T typically involves adjusting the gain and offset settings to match the specific application requirements. This can be done using an external calibration circuit or through software calibration using a microcontroller or other digital interface. Refer to the datasheet and application notes for specific calibration procedures.
The typical response time of the ACS720KLATR-80AB-T is around 1-2 microseconds, depending on the input current and the output filter settings. This allows the device to accurately track fast-changing current signals in high-frequency applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS720KLATR-80AB-T Overview

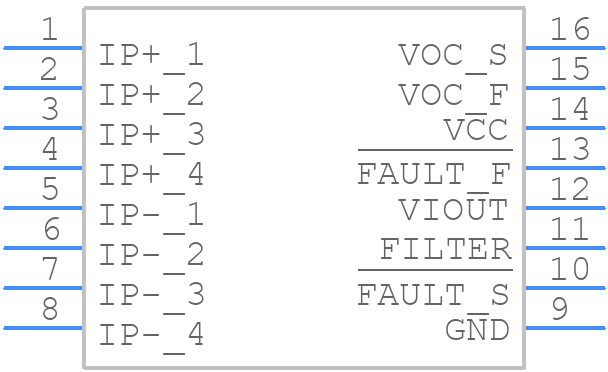

Use the download button to access the ACS720KLATR-80AB-T schematic symbol, PCB footprint, and 3D model.
