ACS722KMATR-20AB-T - Allegro Microsystems

Description: High Accuracy 3.3V Optimized Current Sensor IC

Download ACS722KMATR-20AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

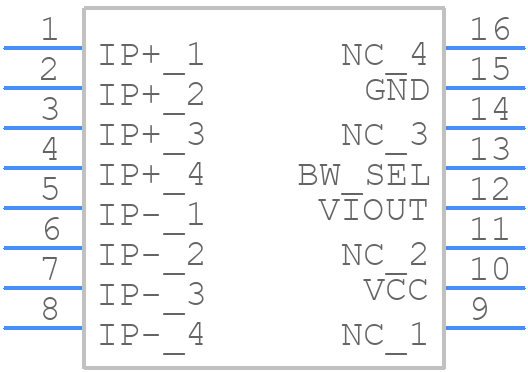

ACS722KMATR-20AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS722KMATR-20AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA
click to zoom
3D Models
ACS722KMATR-20AB-T - Allegro Microsystems - 3D model - Small Outline Packages - MA
click to zoom

ACS722KMATR-20AB-T Details

  • Manufacturer Part Number:

    ACS722KMATR-20AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Range:

    0.33-2.97V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS722KMATR-20AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS722KMATR-20AB-T is -40°C to 150°C.
  • The ACS722KMATR-20AB-T has an internal overcurrent detection circuit that limits the output current to prevent damage to the device.
  • The typical response time for the ACS722KMATR-20AB-T to detect a current change is 1.5 μs.
  • Yes, the ACS722KMATR-20AB-T can be used in high-voltage applications up to 1000 Vrms.
  • The ACS722KMATR-20AB-T has a typical accuracy of ±1.5% at 25°C for current measurements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS722KMATR-20AB-T Overview

Use the download button to access the ACS722KMATR-20AB-T schematic symbol, PCB footprint, and 3D model.
