ACS722LLCTR-10AB-T - Allegro Microsystems

Description: High Accuracy 3.3V Optimized Current Sensor IC

Download ACS722LLCTR-10AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

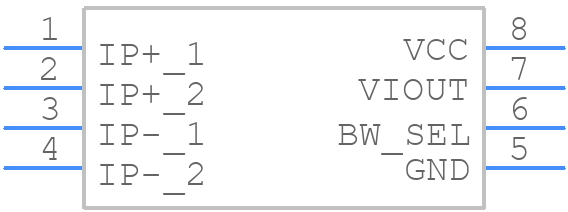

ACS722LLCTR-10AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS722LLCTR-10AB-T - Allegro Microsystems PCB footprint - Other - Other - LC,8-pin SOIC
click to zoom
3D Models
ACS722LLCTR-10AB-T - Allegro Microsystems - 3D model - Other - LC,8-pin SOIC
click to zoom

ACS722LLCTR-10AB-T Details

  • Manufacturer Part Number:

    ACS722LLCTR-10AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Additional Feature:

    OVERCURRENT FAULT PROTECTION

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS722LLCTR-10AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS722LLCTR-10AB-T is -40°C to 150°C.
  • The output voltage of the ACS722LLCTR-10AB-T is ratiometric, meaning it scales with the supply voltage. You should use a voltage regulator to ensure a stable supply voltage to the device.
  • A good PCB layout for the ACS722LLCTR-10AB-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the output traces to reduce noise and interference.
  • The ACS722LLCTR-10AB-T does not require calibration. It is a ratiometric device, and its output voltage is proportional to the input current. However, you may need to adjust the gain and offset of the output signal depending on your specific application.
  • The typical response time of the ACS722LLCTR-10AB-T is 2 μs. However, this can vary depending on the specific application and the bandwidth of the output signal.
