ACS722LLCTR-20AU-T - Allegro Microsystems

Description: High Accuracy 3.3V Optimized Current Sensor IC

Download ACS722LLCTR-20AU-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

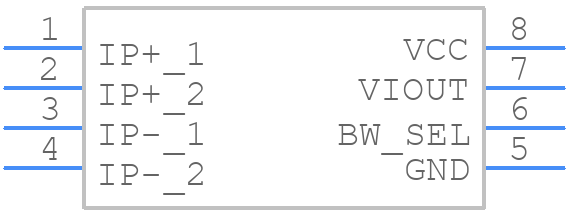

ACS722LLCTR-20AU-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS722LLCTR-20AU-T - Allegro Microsystems PCB footprint - Other - Other - LC,8-pin SOIC
click to zoom
3D Models
ACS722LLCTR-20AU-T - Allegro Microsystems - 3D model - Other - LC,8-pin SOIC
click to zoom

ACS722LLCTR-20AU-T Details

  • Manufacturer Part Number:

    ACS722LLCTR-20AU-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Additional Feature:

    OVERCURRENT FAULT PROTECTION

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS722LLCTR-20AU-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the ACS722LLCTR-20AU-T involves keeping the current path as short as possible, using a solid ground plane, and minimizing the distance between the device and the current-carrying conductor. Allegro provides a recommended PCB layout in their application note AN296050.
  • Calibration of the ACS722LLCTR-20AU-T involves applying a known current to the device and adjusting the output voltage to match the expected value. Allegro provides a calibration procedure in their application note AN296050.
  • The ACS722LLCTR-20AU-T has a temperature coefficient of ±0.1% per °C, which means that the device's accuracy can be affected by temperature changes. It is recommended to calibrate the device at the operating temperature range to ensure accurate current measurement.
  • Yes, the ACS722LLCTR-20AU-T can be used for bidirectional current measurement. The device provides a differential output that can be used to measure both positive and negative currents.
  • The ACS722LLCTR-20AU-T has a maximum allowable current of 20A, as indicated by the '20AU' in the part number. Exceeding this current limit can damage the device.
