ACS722LLCTR-40AB-T - Allegro Microsystems

Description: High Accuracy 3.3V Optimized Current Sensor IC

Download ACS722LLCTR-40AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

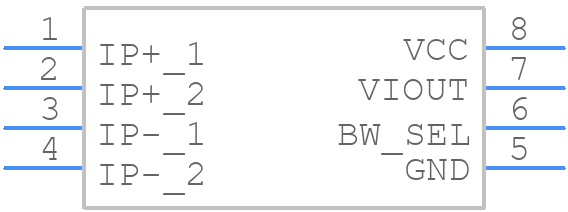

ACS722LLCTR-40AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS722LLCTR-40AB-T - Allegro Microsystems PCB footprint - Other - Other - LC,8-pin SOIC
click to zoom
3D Models
ACS722LLCTR-40AB-T - Allegro Microsystems - 3D model - Other - LC,8-pin SOIC
click to zoom

ACS722LLCTR-40AB-T Details

  • Manufacturer Part Number:

    ACS722LLCTR-40AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Additional Feature:

    OVERCURRENT FAULT PROTECTION

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS722LLCTR-40AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS722LLCTR-40AB-T is -40°C to 150°C.
  • The output voltage of the ACS722LLCTR-40AB-T is ratiometric, meaning it scales with the supply voltage. It's recommended to use a voltage regulator to maintain a stable supply voltage to ensure accurate output.
  • A good PCB layout for the ACS722LLCTR-40AB-T involves keeping the current sense lines as short as possible, using a ground plane, and minimizing noise coupling. It's also recommended to use a 4-layer PCB with a dedicated ground plane.
  • The ACS722LLCTR-40AB-T does not require calibration. It's a ratiometric device, and the output voltage is proportional to the input current. However, it's recommended to perform a system-level calibration to account for any system-specific errors.
  • The recommended input current range for the ACS722LLCTR-40AB-T is 0 to 40A. Exceeding this range may result in inaccurate readings or damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS722LLCTR-40AB-T Overview

Use the download button to access the ACS722LLCTR-40AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS72, or try a keyword search, such as Other Sensors/Transducers
