ACS723KMATR-10AB-T - Allegro Microsystems

Description: High Accuracy 5V Optimized Current Sensor IC

Download ACS723KMATR-10AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

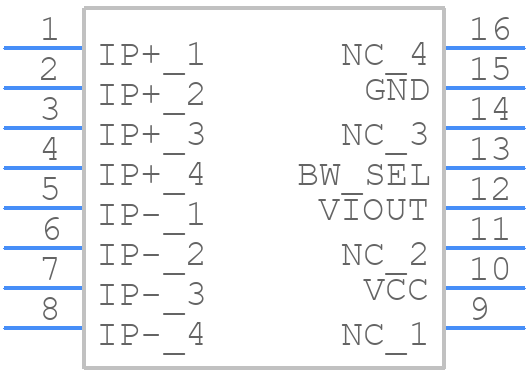

Symbol
ACS723KMATR-10AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS723KMATR-10AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA
click to zoom
3D Models
ACS723KMATR-10AB-T - Allegro Microsystems - 3D model - Small Outline Packages - MA
click to zoom

ACS723KMATR-10AB-T Details

  • Manufacturer Part Number:

    ACS723KMATR-10AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Accuracy-Max (%):

    2%

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Range:

    0.5-4.5V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS723KMATR-10AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS723KMATR-10AB-T is -40°C to 150°C.
  • The sensitivity of the ACS723KMATR-10AB-T can be calculated using the formula: Sensitivity (mV/G) = (Vout / Vin) x (Rload / Rshunt), where Vout is the output voltage, Vin is the input voltage, Rload is the load resistance, and Rshunt is the shunt resistance.
  • The recommended PCB layout for the ACS723KMATR-10AB-T involves placing the device near the current-carrying conductor, using a ground plane to reduce noise, and keeping the signal traces short and away from high-current paths.
  • Temperature effects on the ACS723KMATR-10AB-T can be compensated for by using a temperature sensor and adjusting the gain of the device accordingly, or by using a temperature-compensated amplifier.
  • The recommended filter capacitor value for the ACS723KMATR-10AB-T is 10 nF to 100 nF, depending on the specific application and noise requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS723KMATR-10AB-T Overview

Use the download button to access the ACS723KMATR-10AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS72, or try a keyword search, such as Other Sensors/Transducers
