ACS723LLCTR-10AB-T - Allegro Microsystems

Description: High Accuracy 5V Optimized Current Sensor IC

Download ACS723LLCTR-10AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

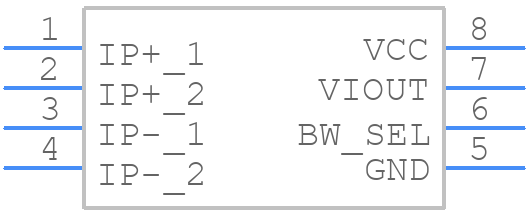

ACS723LLCTR-10AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS723LLCTR-10AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - Package LC, 8-pin SOICN-3
click to zoom
3D Models
ACS723LLCTR-10AB-T - Allegro Microsystems - 3D model - Small Outline Packages - Package LC, 8-pin SOICN-3
click to zoom

ACS723LLCTR-10AB-T Details

  • Manufacturer Part Number:

    ACS723LLCTR-10AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    MATTE TIN

ACS723LLCTR-10AB-T Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The output voltage of the ACS723LLCTR-10AB-T is proportional to the input current. The output voltage can be calculated using the sensitivity specification in the datasheet, which is typically 110 mV/A.
  • The bandwidth of the ACS723LLCTR-10AB-T is typically 80 kHz. This means that the device can accurately measure currents up to 80 kHz.
  • Yes, the ACS723LLCTR-10AB-T can be used to measure AC currents. However, the device is optimized for DC current measurement, and the accuracy may degrade at high frequencies.
  • The power consumption of the ACS723LLCTR-10AB-T is typically 10 mA at 5V supply voltage. This can vary depending on the operating conditions and the output load.
