Part Image

ACS723LLCTR-40AU-T - Allegro Microsystems

Description: High Accuracy 5V Optimized Current Sensor IC

Download ACS723LLCTR-40AU-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

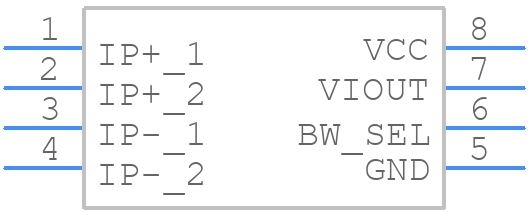

ACS723LLCTR-40AU-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS723LLCTR-40AU-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LC, 8-pin SOICN_2021-1
click to zoom
3D Models
ACS723LLCTR-40AU-T - Allegro Microsystems - 3D model - Small Outline Packages - LC, 8-pin SOICN_2021-1
click to zoom

ACS723LLCTR-40AU-T Details

  • Manufacturer Part Number:

    ACS723LLCTR-40AU-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    MATTE TIN

ACS723LLCTR-40AU-T Frequently Asked Questions (FAQs)

  • The ACS723LLCTR-40AU-T can measure currents up to 40A, but it's recommended to derate the current measurement to 30A for optimal accuracy and reliability.
  • The ACS723LLCTR-40AU-T has a typical accuracy of ±1.5% at 25°C, but this can vary depending on the operating temperature and other factors.
  • The ACS723LLCTR-40AU-T has a bandwidth of 80 kHz, which allows it to measure currents with high frequency components.
  • Yes, the ACS723LLCTR-40AU-T can measure both AC and DC currents, making it suitable for a wide range of applications.
  • The ACS723LLCTR-40AU-T has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS723LLCTR-40AU-T Overview

Use the download button to access the ACS723LLCTR-40AU-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS72, or try a keyword search, such as Other Sensors/Transducers
