The maximum operating temperature range for the ACS723LLCTR-50AB-T is -40°C to 150°C, with a typical operating temperature range of -20°C to 85°C.
Calibration of the ACS723LLCTR-50AB-T involves applying a known current to the device and adjusting the output voltage to match the expected value. The datasheet provides a calibration procedure, and Allegro also offers a calibration tool to simplify the process.
The ACS723LLCTR-50AB-T has a typical temperature coefficient of ±0.1% per °C, which means that the device's accuracy may vary by ±0.1% for every 1°C change in temperature. This can be compensated for by using temperature compensation techniques or by calibrating the device at the operating temperature range.
Yes, the ACS723LLCTR-50AB-T can be used for bidirectional current measurement. The device has a symmetrical output voltage range, allowing it to measure both positive and negative currents. However, the device's output voltage will be proportional to the absolute value of the current, so additional circuitry may be required to determine the direction of the current.
The recommended PCB layout and placement for the ACS723LLCTR-50AB-T involves keeping the device away from high-current carrying traces and components, using a solid ground plane, and minimizing the distance between the device and the current-carrying conductor. Allegro provides a PCB layout guide and application notes to help with the design process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS723LLCTR-50AB-T Overview

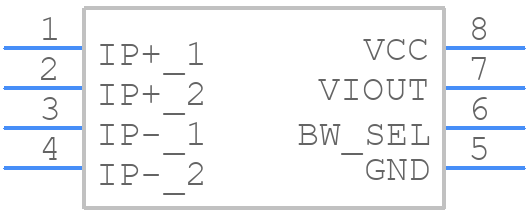

Use the download button to access the ACS723LLCTR-50AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS72,
or try a keyword search, such as Other Sensors/Transducers
