Allegro provides a recommended PCB layout in their application note AN296065, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy.
Calibration involves adjusting the zero-current output voltage and sensitivity to match the specific requirements of your application. Allegro provides a calibration procedure in their application note AN296065, which includes steps for adjusting the offset and gain using external resistors.
While the datasheet specifies a recommended operating voltage range of 4.5V to 5.5V, Allegro recommends that the maximum allowable voltage on the VCC pin should not exceed 6.5V to prevent damage to the device.
The ACS724KMATR-12AB-T has an internal overcurrent detection circuit that will reduce the output voltage in response to an overcurrent condition. To handle overcurrent conditions, you can use an external circuit to detect the reduced output voltage and take appropriate action, such as shutting down the system or triggering an alarm.
The thermal resistance of the ACS724KMATR-12AB-T package is typically around 25°C/W, which means that for every watt of power dissipated, the junction temperature will rise by 25°C above the ambient temperature. This information is not typically included in the datasheet but can be obtained from Allegro's application notes or technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS724KMATR-12AB-T Overview

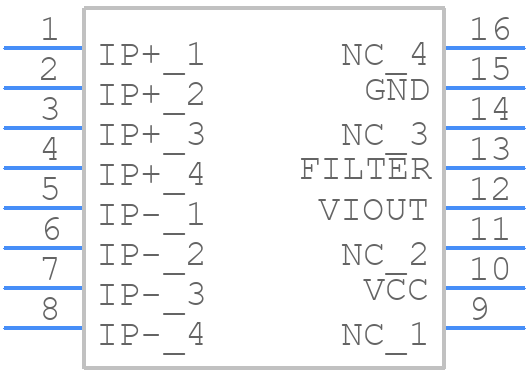

Use the download button to access the ACS724KMATR-12AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS72,
or try a keyword search, such as Other Sensors/Transducers
