ACS724LLCTR-05AB-T - Allegro Microsystems

Description: High-Accuracy, 5V Isolated Current Sensor with Stray Field Rejection

Download ACS724LLCTR-05AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

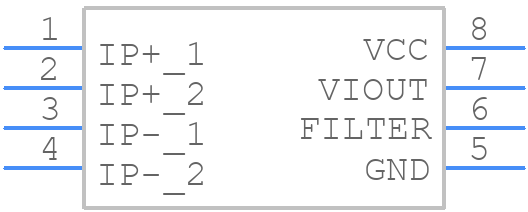

ACS724LLCTR-05AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS724LLCTR-05AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LC, 8-pin SOICN
click to zoom
3D Models
ACS724LLCTR-05AB-T - Allegro Microsystems - 3D model - Small Outline Packages - LC, 8-pin SOICN
click to zoom

ACS724LLCTR-05AB-T Details

  • Manufacturer Part Number:

    ACS724LLCTR-05AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Date Of Intro:

    2016-08-08

  • Manufacturer:

    Allegro MicroSystems LLC

  • Additional Feature:

    BODY HGT_MAX

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    MATTE TIN

ACS724LLCTR-05AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS724LLCTR-05AB-T is -40°C to 150°C.
  • To ensure accurate current measurements, make sure to follow proper PCB layout and design guidelines, use a low-impedance path for the current conductor, and minimize noise and interference in the system.
  • The recommended PCB layout for the ACS724LLCTR-05AB-T involves placing the device near the current-carrying conductor, using a low-impedance path for the conductor, and minimizing the distance between the device and the conductor.
  • The ACS724LLCTR-05AB-T has an internal overcurrent detection feature that can be used to detect overcurrent conditions. The device can also be used with external overcurrent detection circuits to provide additional protection.
  • The typical response time for the ACS724LLCTR-05AB-T is 1.5 μs, which allows for fast and accurate current measurements.
