ACS724LMATR-20AB-T - Allegro Microsystems

Description: High-Accuracy, 5V Isolated Current Sensor with Stray Field Rejection

Download ACS724LMATR-20AB-T Model

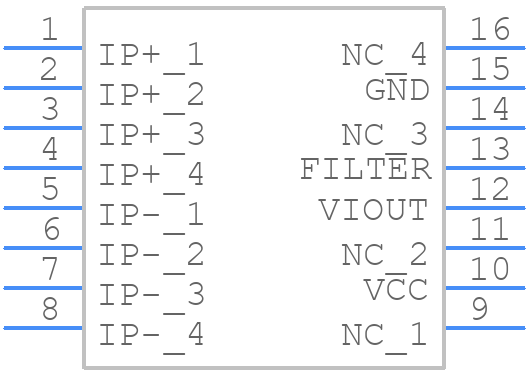

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ACS724LMATR-20AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - 16 SOICW Package LA
click to zoom
3D Models
ACS724LMATR-20AB-T - Allegro Microsystems  - 3D model - Small Outline Packages - 16 SOICW Package LA
click to zoom

ACS724LMATR-20AB-T Details

  • Manufacturer Part Number:

    ACS724LMATR-20AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.65 mm

  • Body Length or Diameter:

    10.3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Linearity (%):

    1 %

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Current-Max:

    14 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Circuit Type:

    SINGLE-ENDED

  • Output Range:

    0.5-4.5V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

ACS724LMATR-20AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS724LMATR-20AB-T is -40°C to 150°C.
  • To ensure accurate current measurements, make sure to follow proper PCB layout and grounding techniques, and use a low-impedance path for the current-carrying conductor. Also, ensure that the device is operated within its specified temperature range and that the input current is within the device's specified range.
  • The recommended PCB layout for the ACS724LMATR-20AB-T involves placing the device as close as possible to the current-carrying conductor, using a low-impedance path for the conductor, and ensuring that the device's ground pin is connected to a solid ground plane.
  • To handle EMI when using the ACS724LMATR-20AB-T, ensure that the device is properly shielded, use a low-pass filter to reduce high-frequency noise, and follow proper PCB layout and grounding techniques.
  • The typical response time of the ACS724LMATR-20AB-T is 1 μs, but this can vary depending on the specific application and operating conditions.
