ACS725KMATR-30AU-T - Allegro Microsystems

Description: High-Accuracy, 3.3V Isolated Current Sensor with Stray Field Rejection

Download ACS725KMATR-30AU-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

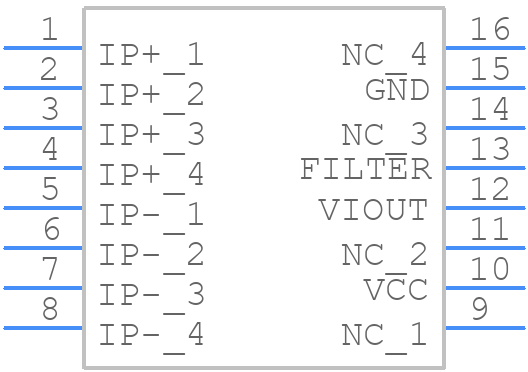

Symbol
ACS725KMATR-30AU-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS725KMATR-30AU-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA, 16-Pin SOICW
click to zoom
3D Models
ACS725KMATR-30AU-T - Allegro Microsystems - 3D model - Small Outline Packages - MA, 16-Pin SOICW
click to zoom

ACS725KMATR-30AU-T Details

  • Manufacturer Part Number:

    ACS725KMATR-30AU-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS725KMATR-30AU-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS725KMATR-30AU-T is -40°C to 150°C.
  • The ACS725KMATR-30AU-T has an internal overcurrent detection circuit that limits the output current to prevent damage to the device in case of an overcurrent condition.
  • The typical response time for the ACS725KMATR-30AU-T to detect a current change is 2.5 μs.
  • Yes, the ACS725KMATR-30AU-T can be used in high-voltage applications up to 30 A and 50 V.
  • The ACS725KMATR-30AU-T has a typical accuracy of ±1.5% at 25°C for current measurements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS725KMATR-30AU-T Overview

Use the download button to access the ACS725KMATR-30AU-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS72, or try a keyword search, such as Other Sensors/Transducers
