ACS725LLCTR-10AU-T - Allegro Microsystems

Description: High-Accuracy, 3.3V Isolated Current Sensor with Stray Field Rejection

Download ACS725LLCTR-10AU-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

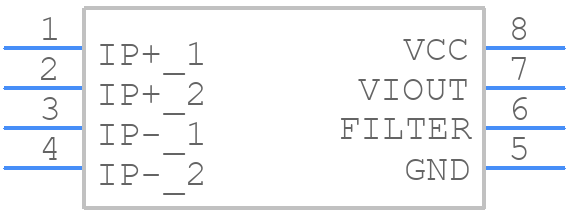

ACS725LLCTR-10AU-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS725LLCTR-10AU-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LC, 8-pin SOICN
click to zoom
3D Models
ACS725LLCTR-10AU-T - Allegro Microsystems - 3D model - Small Outline Packages - LC, 8-pin SOICN
click to zoom

ACS725LLCTR-10AU-T Details

  • Manufacturer Part Number:

    ACS725LLCTR-10AU-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    3A991

  • HTS Code:

    8543.70.45.00

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Additional Feature:

    BODY HEIGHT_MAX

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    14 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Termination Type:

    SOLDER

ACS725LLCTR-10AU-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS725LLCTR-10AU-T is -40°C to 150°C.
  • To ensure accurate current measurements, make sure to follow proper PCB layout and grounding techniques, and use a low-impedance path for the current-carrying conductor. Also, ensure that the device is operated within its specified temperature range and that the input current is within the device's specified range.
  • The recommended PCB layout for the ACS725LLCTR-10AU-T involves placing the device as close as possible to the current-carrying conductor, using a low-impedance path for the conductor, and minimizing the distance between the device and the conductor. Additionally, ensure that the PCB layout is symmetrical and that the device is not placed near any noise sources.
  • To handle EMI when using the ACS725LLCTR-10AU-T, ensure that the device is properly shielded, and use EMI filters or shielding on the PCB. Additionally, follow proper PCB layout and grounding techniques to minimize the effects of EMI.
  • The typical response time of the ACS725LLCTR-10AU-T is 1.5 μs, which is the time it takes for the device to settle to within 1% of its final value after a step change in the input current.
