ACS725LMATR-20AB-T - Allegro Microsystems

Description: High-Accuracy, 3.3V Isolated Current Sensor with Stray Field Rejection

Download ACS725LMATR-20AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

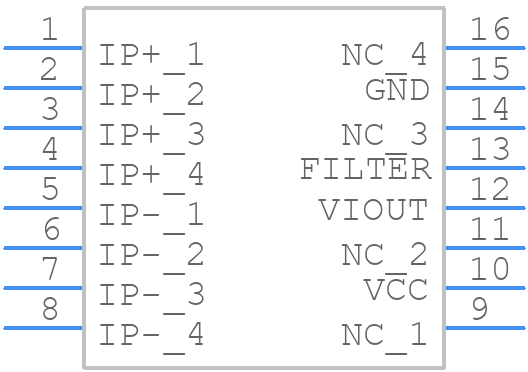

ACS725LMATR-20AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS725LMATR-20AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - 16 SOICW Package LA
click to zoom
3D Models
ACS725LMATR-20AB-T - Allegro Microsystems - 3D model - Small Outline Packages - 16 SOICW Package LA
click to zoom

ACS725LMATR-20AB-T Details

  • Manufacturer Part Number:

    ACS725LMATR-20AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • Additional Feature:

    AEC-Q100; IT HAVE SENSITIVITY OF 66 MV/A

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.65 mm

  • Body Length or Diameter:

    10.3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Current-Max:

    14 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

ACS725LMATR-20AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS725LMATR-20AB-T is -40°C to 150°C.
  • The output voltage of the ACS725LMATR-20AB-T is ratiometric, meaning it is proportional to the supply voltage. It's recommended to use a voltage regulator to maintain a stable supply voltage to ensure accurate output voltage readings.
  • Allegro recommends a 4-layer PCB with a solid ground plane and a separate layer for the current sense lines to minimize noise and ensure accurate measurements.
  • The ACS725LMATR-20AB-T does not require calibration. It is a self-contained current sensor with an integrated amplifier and offset correction. However, it's recommended to perform a zero-current calibration to ensure accurate readings.
  • The response time of the ACS725LMATR-20AB-T is typically around 1 μs, making it suitable for high-speed current sensing applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS725LMATR-20AB-T Overview

Use the download button to access the ACS725LMATR-20AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS72, or try a keyword search, such as Other Sensors/Transducers
