ACS725LMATR-30AB-T - Allegro Microsystems

Description: High-Accuracy, 3.3V Isolated Current Sensor with Stray Field Rejection

Download ACS725LMATR-30AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

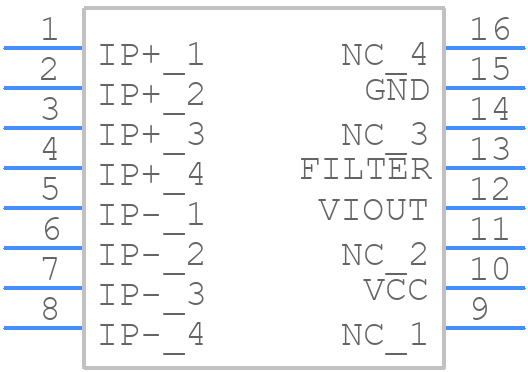

ACS725LMATR-30AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA 16-Pin SOICW
click to zoom
3D Models
ACS725LMATR-30AB-T - Allegro Microsystems  - 3D model - Small Outline Packages - MA 16-Pin SOICW
click to zoom

ACS725LMATR-30AB-T Details

  • Manufacturer Part Number:

    ACS725LMATR-30AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • Additional Feature:

    AEC-Q100; IT HAVE SENSITIVITY OF 66 MV/A

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.65 mm

  • Body Length or Diameter:

    10.3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Current-Max:

    14 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

ACS725LMATR-30AB-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296065, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy.
  • Calibration involves adjusting the zero-current output voltage and sensitivity to match the specific requirements of your application. Allegro provides a calibration procedure in their application note AN296065, which includes steps for adjusting the offset and gain using external resistors.
  • The maximum allowable voltage on the VCC pin is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • The ACS725LMATR-30AB-T is rated for operation up to 150°C, but the accuracy and linearity may degrade at higher temperatures. Allegro provides thermal derating curves in the datasheet to help designers estimate the device's performance at elevated temperatures.
  • Allegro recommends using proper PCB layout techniques, such as separating analog and digital traces, using ground planes, and adding EMI filters or shielding to minimize the impact of EMI on the device's performance.
