ACS725LMATR-30AU-T - Allegro Microsystems

Description: High-Accuracy, 3.3V Isolated Current Sensor with Stray Field Rejection

Download ACS725LMATR-30AU-T Model

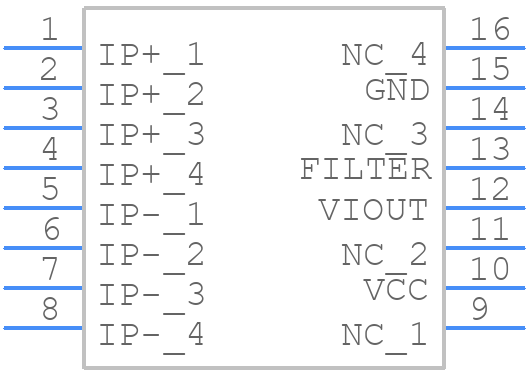

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ACS725LMATR-30AU-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LA, 16-Pin SOICW
click to zoom
3D Models
ACS725LMATR-30AU-T - Allegro Microsystems  - 3D model - Small Outline Packages - LA, 16-Pin SOICW
click to zoom

ACS725LMATR-30AU-T Details

  • Manufacturer Part Number:

    ACS725LMATR-30AU-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • Additional Feature:

    AEC-Q100; IT HAVE SENSITIVITY OF 66 MV/A

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.65 mm

  • Body Length or Diameter:

    10.3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Current-Max:

    14 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

ACS725LMATR-30AU-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout guide in their application note AN269, which can be found on their website. It's essential to follow these guidelines to minimize noise and ensure accurate current measurements.
  • Calibration is not required for the ACS725LMATR-30U-T. The device is factory-calibrated and provides a high degree of accuracy over the entire operating temperature range. However, if you need to fine-tune the device for your specific application, Allegro provides an application note AN223 that outlines the calibration procedure.
  • The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage can cause permanent damage to the device. It's essential to ensure that the power supply voltage is within the recommended operating range of 4.5V to 5.5V.
  • The ACS725LMATR-30AU-T is rated for operation up to 150°C. However, the device's accuracy and performance may degrade at high temperatures. It's essential to consult the datasheet and application notes to ensure the device meets your specific requirements in high-temperature environments.
  • Allegro provides guidelines for EMI protection in their application note AN221. It's essential to follow these guidelines to ensure the device operates accurately and reliably in noisy environments.
