ACS726LLFTR-20B-T - Allegro Microsystems

Description: Galvanically Isolated Current Sensor IC With Differential Output And Externally Adjustable Gain

Download ACS726LLFTR-20B-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

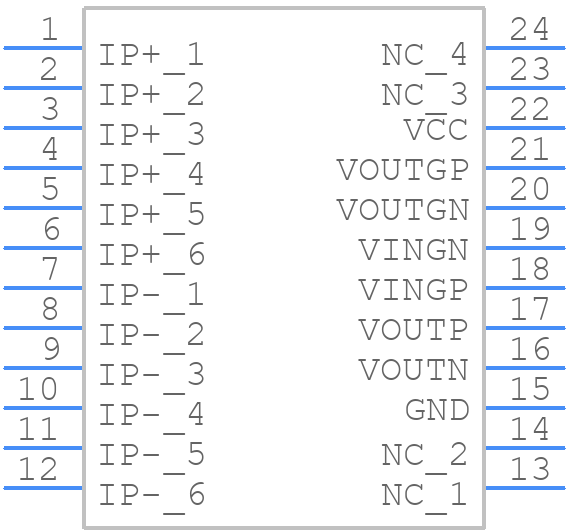

ACS726LLFTR-20B-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS726LLFTR-20B-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LF, 24-Pin QSOP
click to zoom
3D Models
ACS726LLFTR-20B-T - Allegro Microsystems - 3D model - Small Outline Packages - LF, 24-Pin QSOP
click to zoom

ACS726LLFTR-20B-T Details

  • Manufacturer Part Number:

    ACS726LLFTR-20B-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-24

  • Manufacturer:

    Allegro MicroSystems LLC

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    8.66 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

ACS726LLFTR-20B-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS726LLFTR-20B-T is -40°C to 150°C.
  • The output voltage of the ACS726LLFTR-20B-T is analog, and it's recommended to use a low-pass filter to remove high-frequency noise and to buffer the output signal to prevent loading effects.
  • It's recommended to follow a 4-layer PCB layout with a solid ground plane, and to keep the analog and digital signals separate to minimize noise and interference.
  • The ACS726LLFTR-20B-T does not require calibration, as it's a ratiometric device that provides an output voltage proportional to the input current. However, it's recommended to perform a zero-current calibration to ensure accurate measurements.
  • The ACS726LLFTR-20B-T can measure currents up to 20A, but it's recommended to derate the current measurement range based on the operating temperature and other environmental factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS726LLFTR-20B-T Overview

Use the download button to access the ACS726LLFTR-20B-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS72, or try a keyword search, such as Other Signal Circuits
