ACS72981LLRATR-100U5 - Allegro Microsystems

Description: High-Precision Linear Hall-Effect-Based Current Sensor IC With 200µΩ Current Conductor

Download ACS72981LLRATR-100U5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

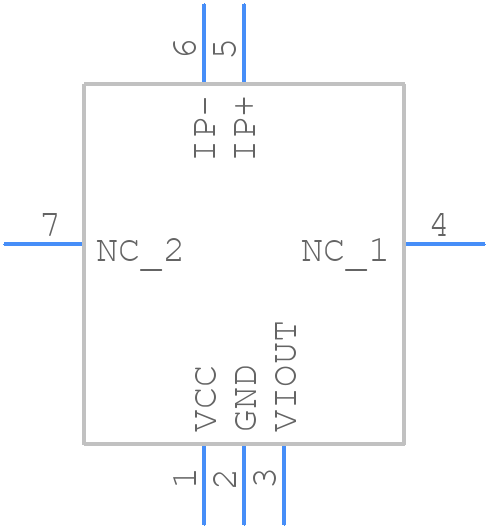

ACS72981LLRATR-100U5 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS72981LLRATR-100U5 - Allegro Microsystems PCB footprint - Other - Other - LR, 7-Pin PSOF Package
click to zoom
3D Models
ACS72981LLRATR-100U5 - Allegro Microsystems - 3D model - Other - LR, 7-Pin PSOF Package
click to zoom

ACS72981LLRATR-100U5 Details

  • Manufacturer Part Number:

    ACS72981LLRATR-100U5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOF-7

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    4.8 mm

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    6.4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    MATTE TIN

ACS72981LLRATR-100U5 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS72981LLRATR-100U5 is -40°C to 150°C.
  • The ACS72981LLRATR-100U5 has an internal overcurrent detection circuit that limits the output current to prevent damage to the device.
  • The typical response time for the ACS72981LLRATR-100U5 to detect a current change is 1.5 μs.
  • Yes, the ACS72981LLRATR-100U5 can be used in high-voltage applications up to 100 V.
  • The ACS72981LLRATR-100U5 has a typical accuracy of ±1.5% for current measurements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS72981LLRATR-100U5 Overview

Use the download button to access the ACS72981LLRATR-100U5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS72, or try a keyword search, such as Other Sensors/Transducers
