ACS733KLATR-40AB-T - Allegro Microsystems

Description: 1 MHz Bandwidth, Galvanically Isolated Current Sensor IC

Download ACS733KLATR-40AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

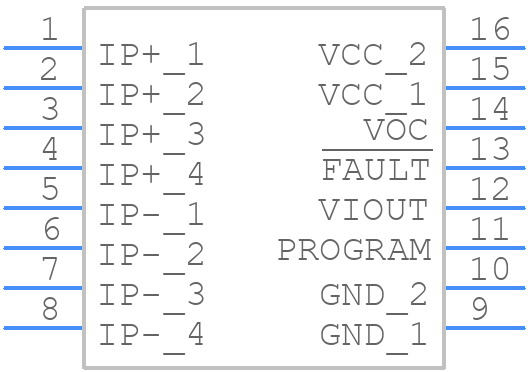

ACS733KLATR-40AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS733KLATR-40AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LA, 16-Pin SOICW
click to zoom
3D Models
ACS733KLATR-40AB-T - Allegro Microsystems - 3D model - Small Outline Packages - LA, 16-Pin SOICW
click to zoom

ACS733KLATR-40AB-T Details

  • Manufacturer Part Number:

    ACS733KLATR-40AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Date Of Intro:

    2018-01-15

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.46 V

  • Supply Voltage-Min:

    3.14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACS733KLATR-40AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS733KLATR-40AB-T is -40°C to 150°C.
  • The output voltage of the ACS733KLATR-40AB-T is a differential output, and it should be connected to a differential amplifier or a differential analog-to-digital converter (ADC) to ensure accurate measurements.
  • A good PCB layout for the ACS733KLATR-40AB-T should include a solid ground plane, a separate analog ground, and a low-impedance power supply to minimize noise and ensure accurate measurements.
  • The ACS733KLATR-40AB-T does not require calibration, as it is a ratiometric device that provides an output voltage proportional to the input current. However, the device should be used in conjunction with a calibration resistor to ensure accurate measurements.
  • The typical current consumption of the ACS733KLATR-40AB-T is 12 mA, but this can vary depending on the operating conditions and the output voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS733KLATR-40AB-T Overview

Use the download button to access the ACS733KLATR-40AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS73, or try a keyword search, such as Other Sensors/Transducers
