ACS733KLATR-65AB-T - Allegro Microsystems

Description: 1 MHz Bandwidth, Galvanically Isolated Current Sensor IC

Download ACS733KLATR-65AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

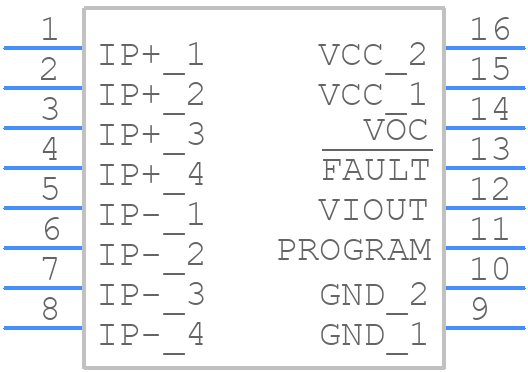

ACS733KLATR-65AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS733KLATR-65AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LA, 16-Pin SOICW
click to zoom
3D Models
ACS733KLATR-65AB-T - Allegro Microsystems - 3D model - Small Outline Packages - LA, 16-Pin SOICW
click to zoom

ACS733KLATR-65AB-T Details

  • Manufacturer Part Number:

    ACS733KLATR-65AB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Date Of Intro:

    2018-01-15

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.46 V

  • Supply Voltage-Min:

    3.14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

ACS733KLATR-65AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS733KLATR-65AB-T is -40°C to 150°C.
  • The output voltage of the ACS733KLATR-65AB-T is a differential output, and it's recommended to use a differential amplifier or a instrumentation amplifier to condition the output signal.
  • It's recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to keep the analog and digital traces separate to minimize noise and interference.
  • The ACS733KLATR-65AB-T does not require calibration, as it is a ratiometric device and the output voltage is proportional to the input current. However, it's recommended to perform a zero-current calibration to ensure accurate measurements.
  • The ACS733KLATR-65AB-T can measure currents up to 65A, but it's recommended to derate the current measurement based on the application's requirements and the device's operating temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS733KLATR-65AB-T Overview

Use the download button to access the ACS733KLATR-65AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS73, or try a keyword search, such as Other Sensors/Transducers
