ACS756KCA-050B-PFF-T - Allegro Microsystems

Description: ALLEGRO MICROSYSTEMS - ACS756KCA-050B-PFF-T - SENSOR, HALL EFFECT, LINEAR, 120KHZ

Download ACS756KCA-050B-PFF-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACS756KCA-050B-PFF-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints

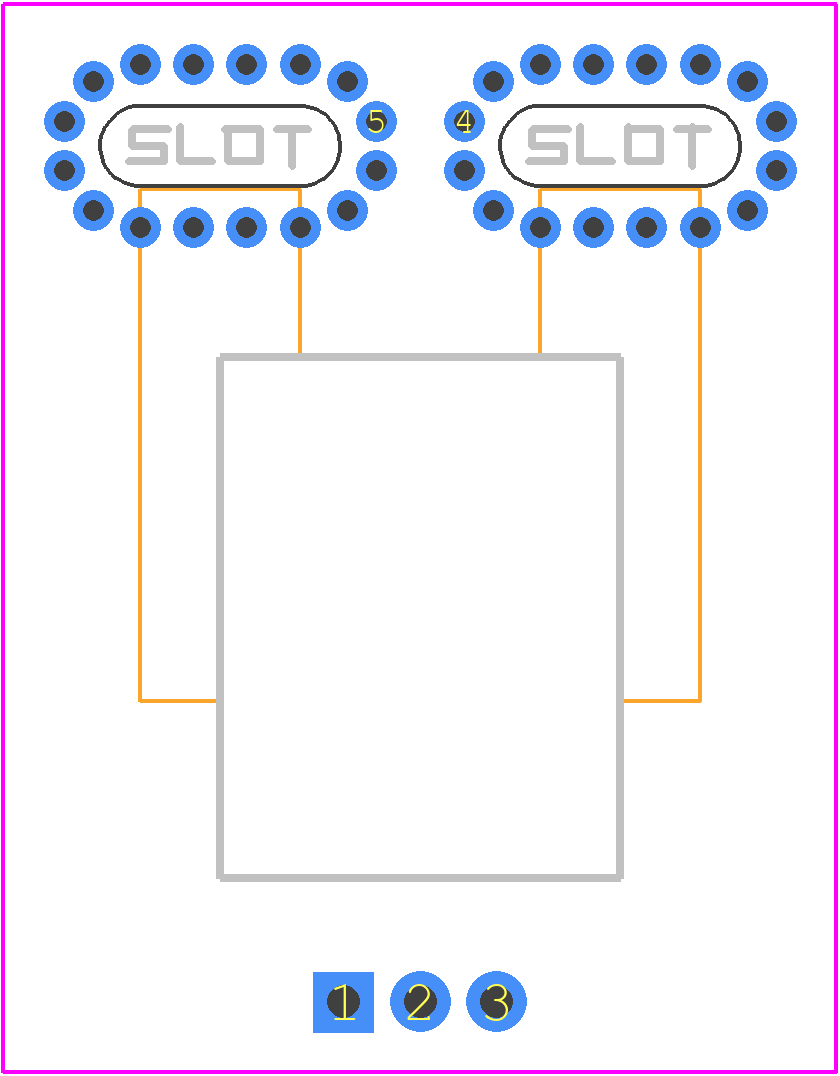

ACS756KCA-050B-PFF-T - Allegro Microsystems PCB footprint - Other - Other - PFF_2021
click to zoom
3D Models
ACS756KCA-050B-PFF-T - Allegro Microsystems - 3D model - Other - PFF_2021
click to zoom

ACS756KCA-050B-PFF-T Details

  • Manufacturer Part Number:

    ACS756KCA-050B-PFF-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Pin Count:

    5

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS756KCA-050B-PFF-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the ACS756KCA-050B-PFF-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the device and the current-carrying conductor. Allegro provides a recommended PCB layout in their application note AN269041.
  • When the input current is zero, the output voltage of the ACS756KCA-050B-PFF-T will be approximately half of the supply voltage (VCC/2). This is a normal operating condition and does not indicate a fault. The output voltage can be filtered or buffered if necessary to remove any noise or ripple.
  • The ACS756KCA-050B-PFF-T is rated for operation from -40°C to 150°C (TJ). However, the device can be operated at temperatures above 150°C for short periods of time, but this may affect its reliability and lifespan.
  • Calibration of the ACS756KCA-050B-PFF-T involves applying a known current to the device and adjusting the output voltage to match the expected value. Allegro provides a calibration procedure in their application note AN269041, which involves applying a series of known currents and measuring the output voltage.
  • The ACS756KCA-050B-PFF-T is designed to be immune to external magnetic fields, but strong fields can still affect its operation. To minimize the effect of external magnetic fields, the device should be shielded or oriented to minimize the field strength.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS756KCA-050B-PFF-T Overview

Use the download button to access the ACS756KCA-050B-PFF-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS75, or try a keyword search, such as Other Sensors/Transducers
