ACS756SCA-050B-PFF-T - Allegro Microsystems

Description: Current Sensor, Bi 50A CA-PFF Allegro Microsystems ACS756SCA-050B-PFF-T Hall Effect Sensor 5-Pin CA PFF

Download ACS756SCA-050B-PFF-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACS756SCA-050B-PFF-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints

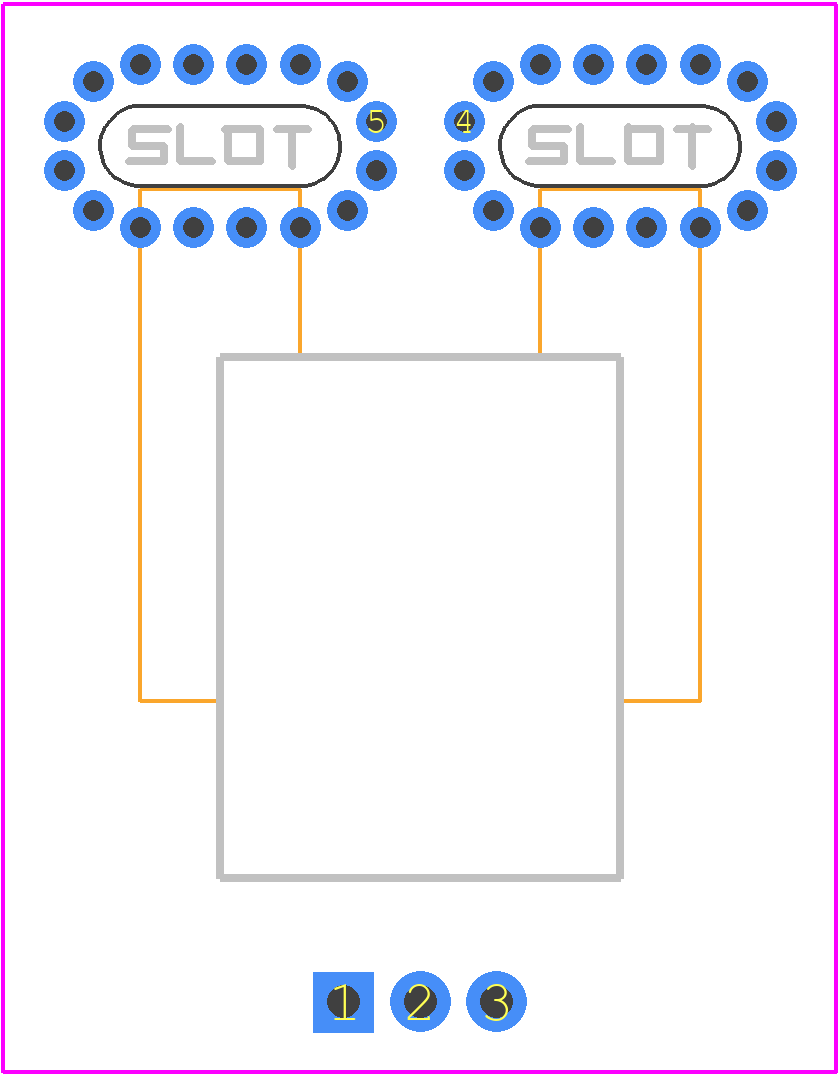

ACS756SCA-050B-PFF-T - Allegro Microsystems PCB footprint - Other - Other - PFF_2021
click to zoom
3D Models
ACS756SCA-050B-PFF-T - Allegro Microsystems - 3D model - Other - PFF_2021
click to zoom

ACS756SCA-050B-PFF-T Details

  • Manufacturer Part Number:

    ACS756SCA-050B-PFF-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Pin Count:

    5

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS756SCA-050B-PFF-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS756SCA-050B-PFF-T is -40°C to 150°C.
  • The output voltage of the ACS756SCA-050B-PFF-T is a differential output, and it should be connected to a differential amplifier or an analog-to-digital converter (ADC) for proper signal conditioning.
  • A good PCB layout for the ACS756SCA-050B-PFF-T should include a solid ground plane, separate analog and digital grounds, and a low-impedance path for the output signals. Additionally, the device should be placed away from high-current carrying traces and other noise sources.
  • The ACS756SCA-050B-PFF-T does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the supply voltage. However, the device should be connected to a stable voltage source, and the output voltage should be measured and adjusted according to the application requirements.
  • The typical current consumption of the ACS756SCA-050B-PFF-T is 12 mA at 5 V supply voltage.
