A good PCB layout for the ACS756SCA-100B-PFF-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the device and the current-carrying conductor. Allegro provides a recommended PCB layout in their application note AN296050.
Calibration involves applying a known current to the device and adjusting the output voltage to match the expected value. Allegro provides a calibration procedure in their application note AN296050, which involves applying a series of known currents and measuring the output voltage.
The ACS756SCA-100B-PFF-T has a specified temperature range of -40°C to 150°C. Over this range, the device's accuracy may vary by ±1% due to thermal drift. To minimize temperature effects, it's recommended to use a thermally stable PCB design and to calibrate the device at the operating temperature.
The ACS756SCA-100B-PFF-T has a bandwidth of 120 kHz, making it suitable for measuring currents up to 120 kHz. However, for higher-frequency applications, Allegro recommends using a different device, such as the ACS770 or ACS780 series, which have higher bandwidths.
To protect the device from overcurrent and overvoltage conditions, Allegro recommends using external protection components, such as fuses, TVS diodes, and resistors, to limit the current and voltage applied to the device. Additionally, the device has internal overcurrent protection, which will limit the output voltage to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS756SCA-100B-PFF-T Overview

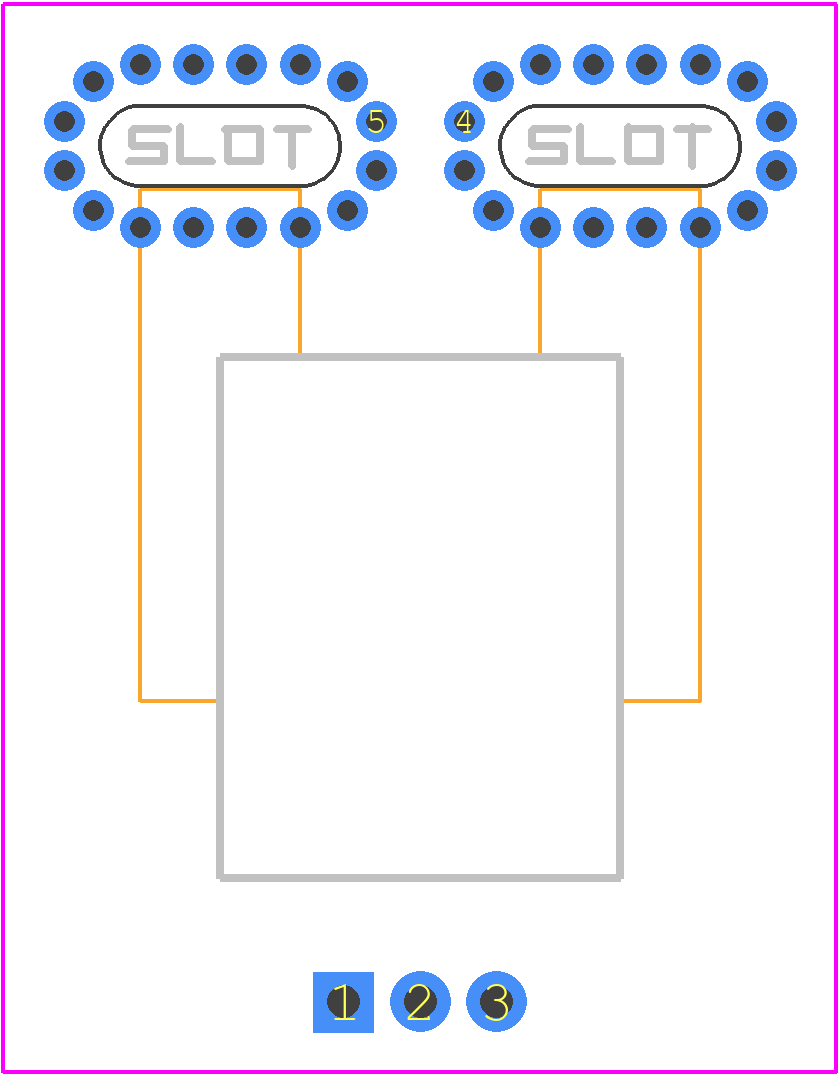

Use the download button to access the ACS756SCA-100B-PFF-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS75,
or try a keyword search, such as Other Sensors/Transducers
