ACS756SCB-100B-PFF-T - Allegro Microsystems

Description: Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 3 kVRMS Voltage Isolation and a Low-Resistance Current Conductor

Download ACS756SCB-100B-PFF-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

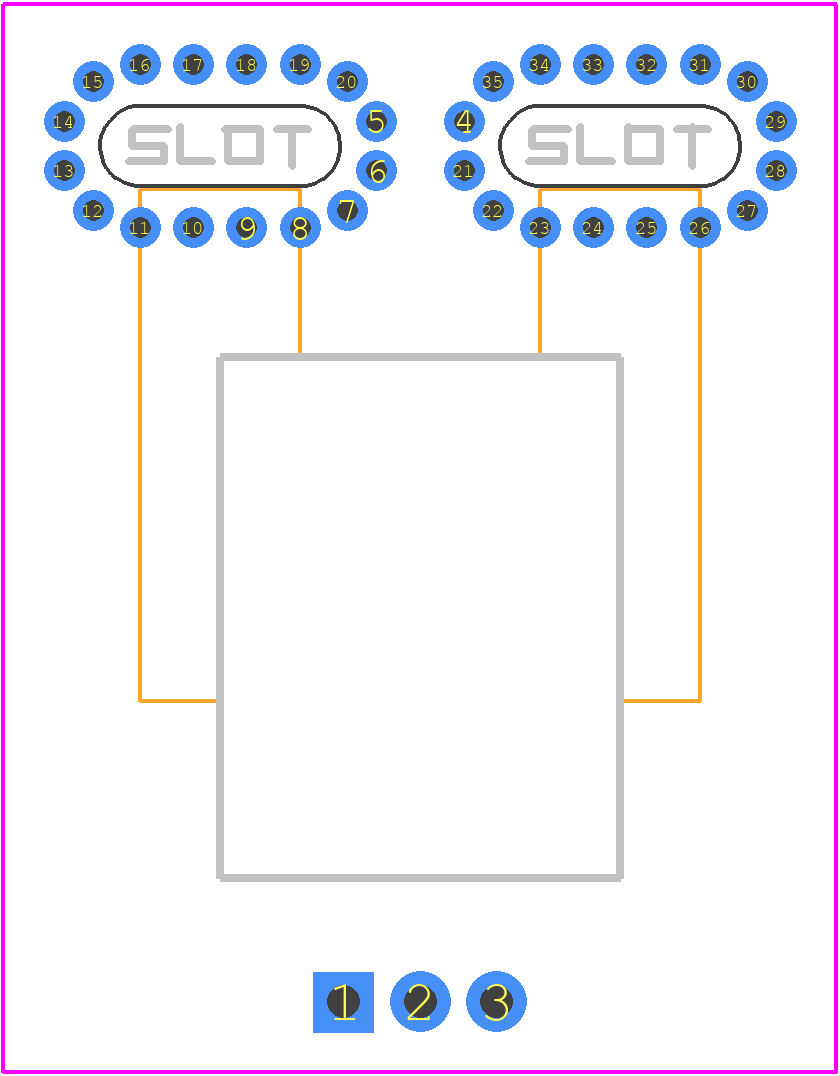

ACS756SCB-100B-PFF-T - Allegro Microsystems PCB footprint - Other - Other - PFF_2021
click to zoom
3D Models
ACS756SCB-100B-PFF-T - Allegro Microsystems  - 3D model - Other - PFF_2021
click to zoom

ACS756SCB-100B-PFF-T Details

  • Manufacturer Part Number:

    ACS756SCB-100B-PFF-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    10 mm

  • Body Height:

    7 mm

  • Body Length or Diameter:

    13 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS756SCB-100B-PFF-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS756SCB-100B-PFF-T is -40°C to 150°C.
  • The output voltage of the ACS756SCB-100B-PFF-T is a differential output, and it should be connected to a differential amplifier or an analog-to-digital converter (ADC) for proper signal conditioning.
  • A good PCB layout for the ACS756SCB-100B-PFF-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the output traces to reduce noise and electromagnetic interference (EMI).
  • The ACS756SCB-100B-PFF-T does not require calibration, as it is a ratiometric device that provides an output voltage proportional to the input current. However, the device may require offset and gain adjustments depending on the specific application.
  • The typical current consumption of the ACS756SCB-100B-PFF-T is around 10 mA, but this can vary depending on the operating conditions and the specific application.
