ACS758LCB-050B-PFF-T - Allegro Microsystems

Description: Thermally Enhanced, Fully Integrated, Hall-Effect-Based Linear Current Sensor IC with 100 ?? Current Conductor

Download ACS758LCB-050B-PFF-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACS758LCB-050B-PFF-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints

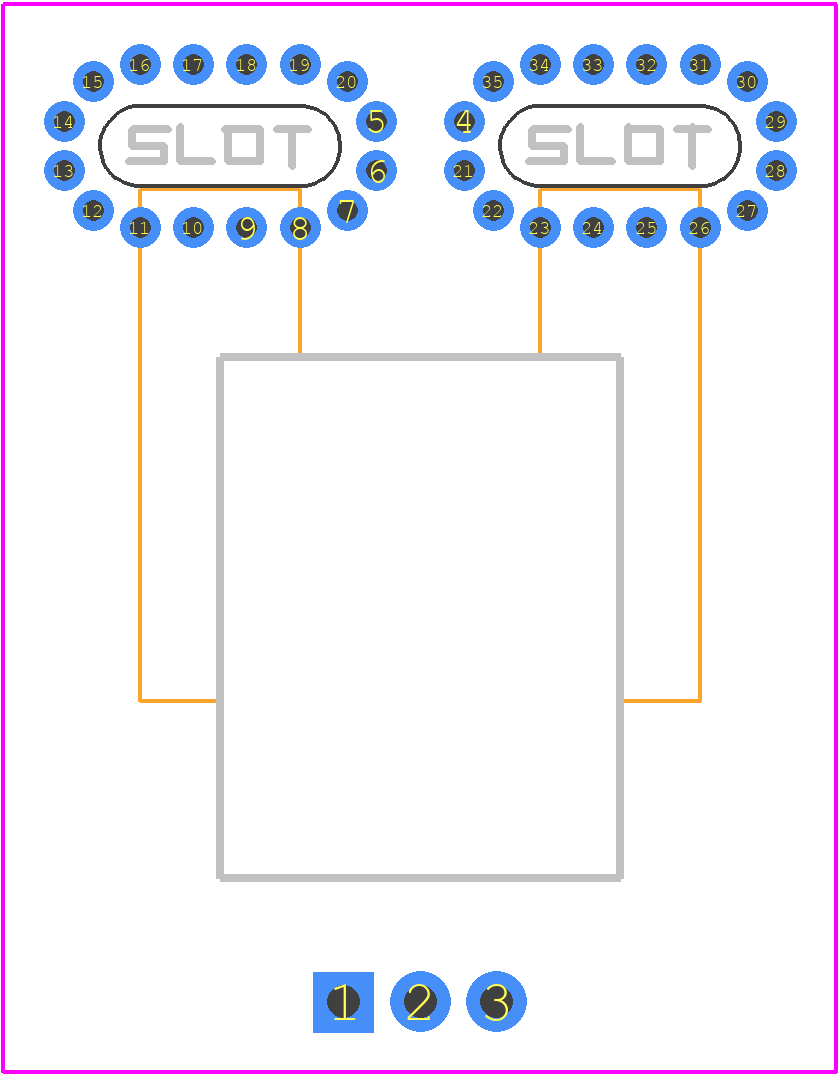

ACS758LCB-050B-PFF-T - Allegro Microsystems PCB footprint - Other - Other - PFF_2021
click to zoom
3D Models
ACS758LCB-050B-PFF-T - Allegro Microsystems - 3D model - Other - PFF_2021
click to zoom

ACS758LCB-050B-PFF-T Details

  • Manufacturer Part Number:

    ACS758LCB-050B-PFF-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-5

  • Pin Count:

    5

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    10 mm

  • Body Height:

    7 mm

  • Body Length or Diameter:

    13 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

ACS758LCB-050B-PFF-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS758LCB-050B-PFF-T is -40°C to 150°C.
  • The output voltage of the ACS758LCB-050B-PFF-T is a differential output, and it should be connected to a differential amplifier or an analog-to-digital converter (ADC) to process the output signal.
  • The recommended PCB layout for the ACS758LCB-050B-PFF-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the output traces to reduce noise and electromagnetic interference (EMI).
  • The ACS758LCB-050B-PFF-T does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the supply voltage, and it does not require any external calibration or trimming.
  • The typical current consumption of the ACS758LCB-050B-PFF-T is 12 mA, but it can vary depending on the operating conditions and the output load.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS758LCB-050B-PFF-T Overview

Use the download button to access the ACS758LCB-050B-PFF-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS75, or try a keyword search, such as Other Sensors/Transducers
