The maximum operating temperature range for the ACS770KCB-150U-PFF-T is -40°C to 150°C.
The ACS770KCB-150U-PFF-T has an internal overcurrent detection circuit that limits the output current to prevent damage to the device.
The typical response time for the ACS770KCB-150U-PFF-T to detect a change in current is 2.5 μs.
No, the ACS770KCB-150U-PFF-T is designed for low-voltage applications and should not be used in high-voltage applications.
The ACS770KCB-150U-PFF-T has a typical accuracy of ±1.5% at 25°C for current measurements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS770KCB-150U-PFF-T Overview

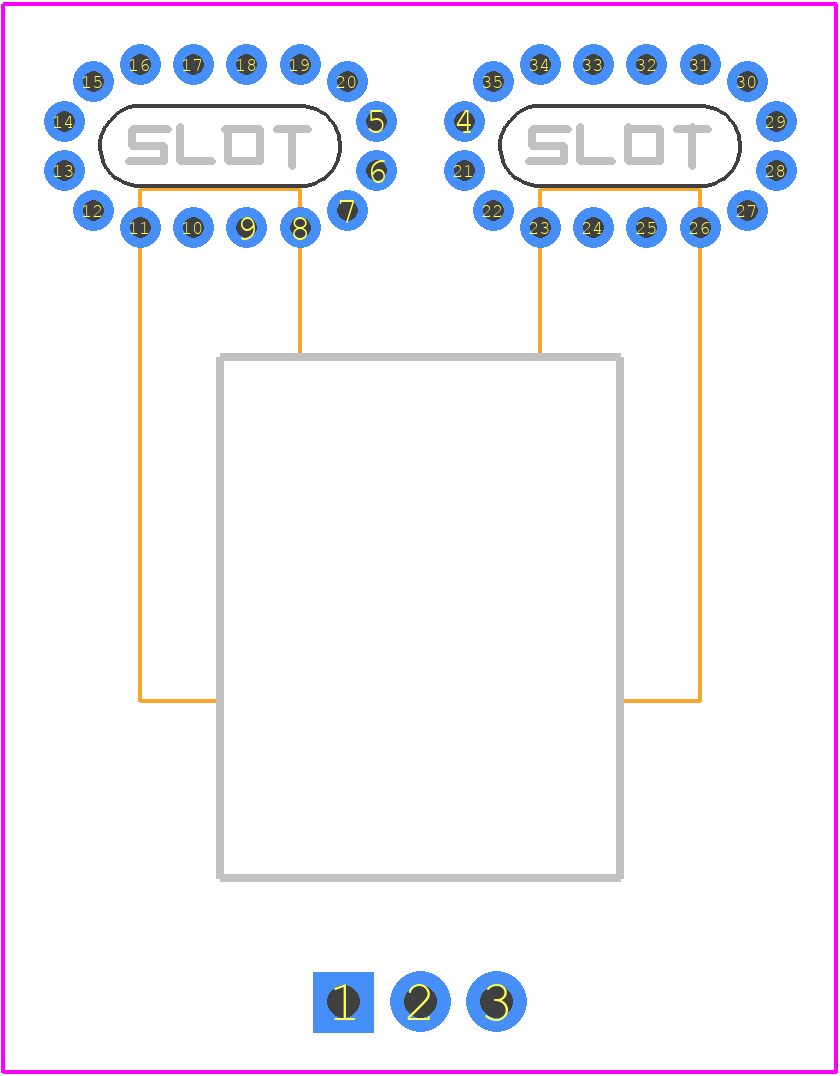

Use the download button to access the ACS770KCB-150U-PFF-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS77,
or try a keyword search, such as Other Sensors/Transducers
