ACS772ECB-300B-PFF-T - Allegro Microsystems

Description: 200kHz, 1.5% Max Tolerance, 100 µΩ Internal Resistance Module-alternative Current Sensor for High Current and High Voltage Applications

Download ACS772ECB-300B-PFF-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACS772ECB-300B-PFF-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints

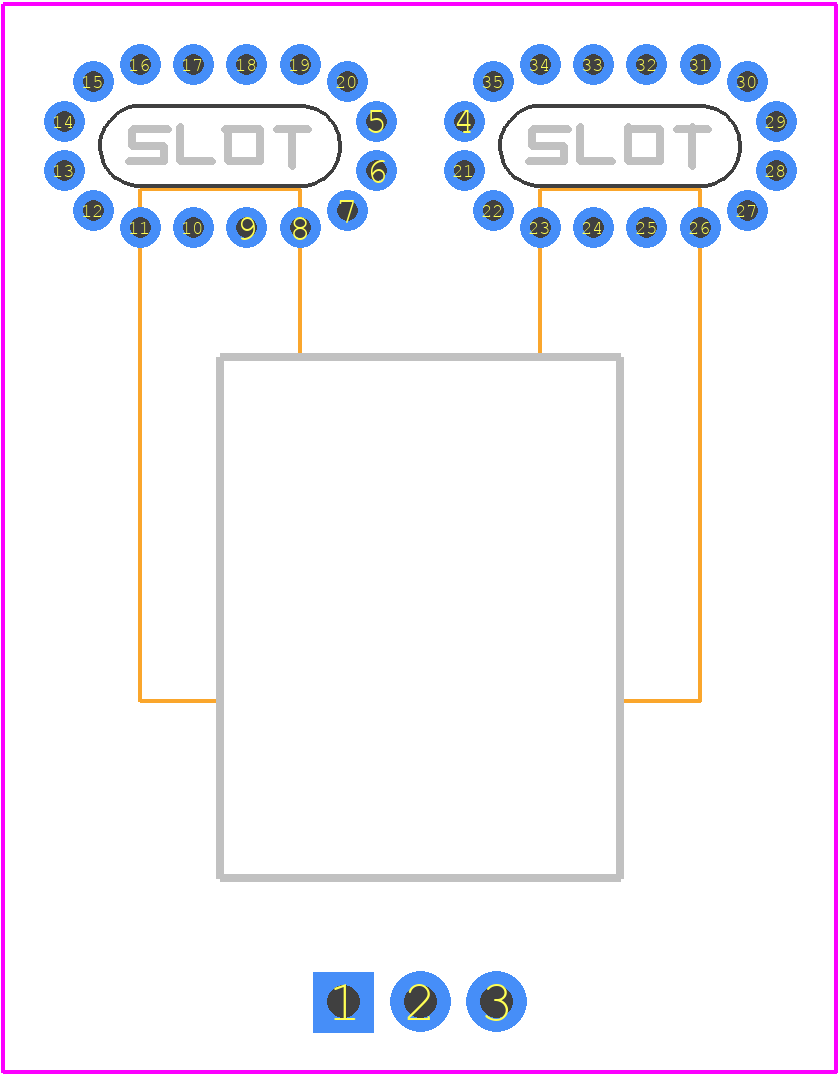

ACS772ECB-300B-PFF-T - Allegro Microsystems PCB footprint - Other - Other - PFF_2021
click to zoom
3D Models
ACS772ECB-300B-PFF-T - Allegro Microsystems - 3D model - Other - PFF_2021
click to zoom

ACS772ECB-300B-PFF-T Details

  • Manufacturer Part Number:

    ACS772ECB-300B-PFF-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-5

  • Date Of Intro:

    2018-11-12

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    10 mm

  • Body Height:

    7 mm

  • Body Length or Diameter:

    13 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)
