The maximum operating temperature range for the ACS772ECBTV-250B-PFF-T is -40°C to 150°C.
The ACS772ECBTV-250B-PFF-T has an internal overcurrent detection circuit that limits the output current to prevent damage to the device.
The typical response time for the ACS772ECBTV-250B-PFF-T to detect a current fault is 1.5 μs.
Yes, the ACS772ECBTV-250B-PFF-T can be used in high-voltage applications up to 250 V.
The ACS772ECBTV-250B-PFF-T has a typical current measurement accuracy of ±2.5% over the operating temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS772ECBTV-250B-PFF-T Overview

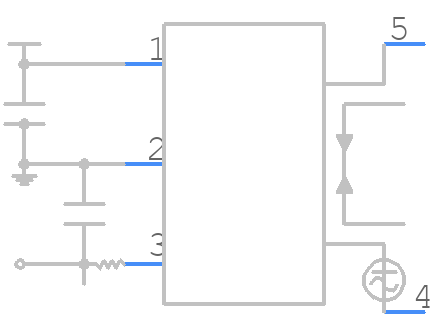

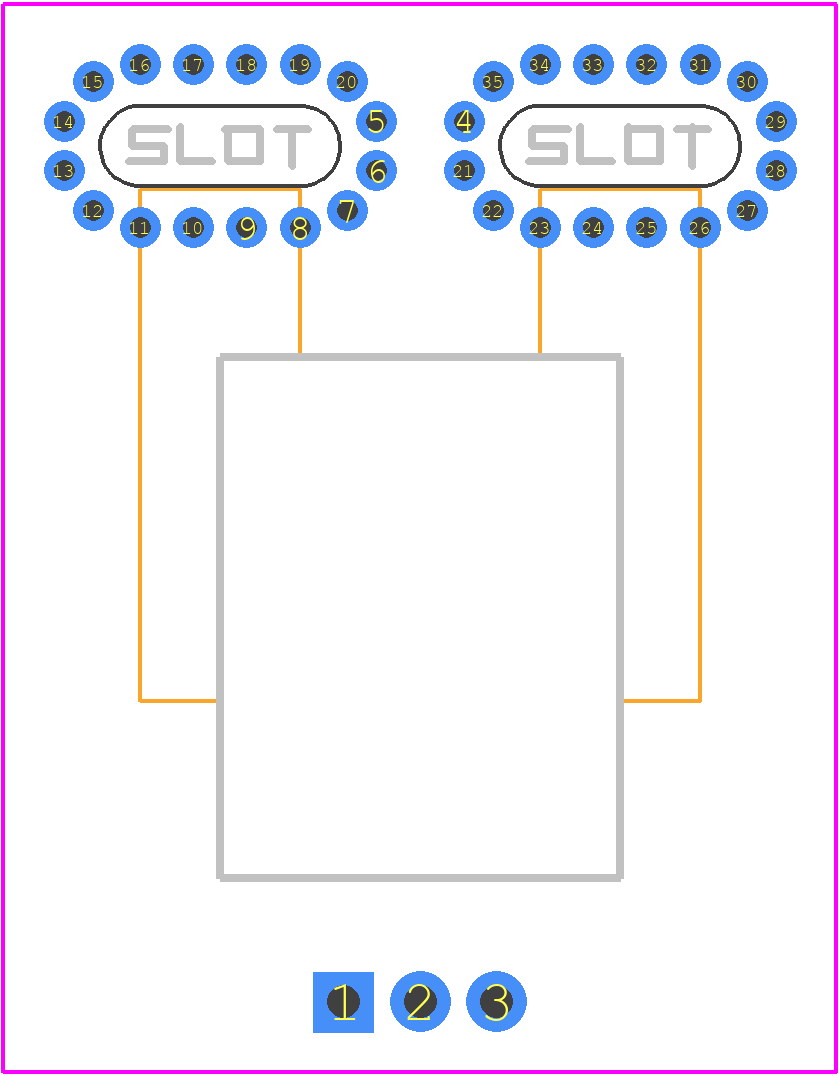

Use the download button to access the ACS772ECBTV-250B-PFF-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS77,
or try a keyword search, such as Other Sensors/Transducers
