ACS772KCB-150B-PFF-T - Allegro Microsystems

Description: 200kHz, 1.5% Max Tolerance, 100 µΩ Internal Resistance Module-alternative Current Sensor for High Current and High Voltage Applications

Download ACS772KCB-150B-PFF-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACS772KCB-150B-PFF-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints

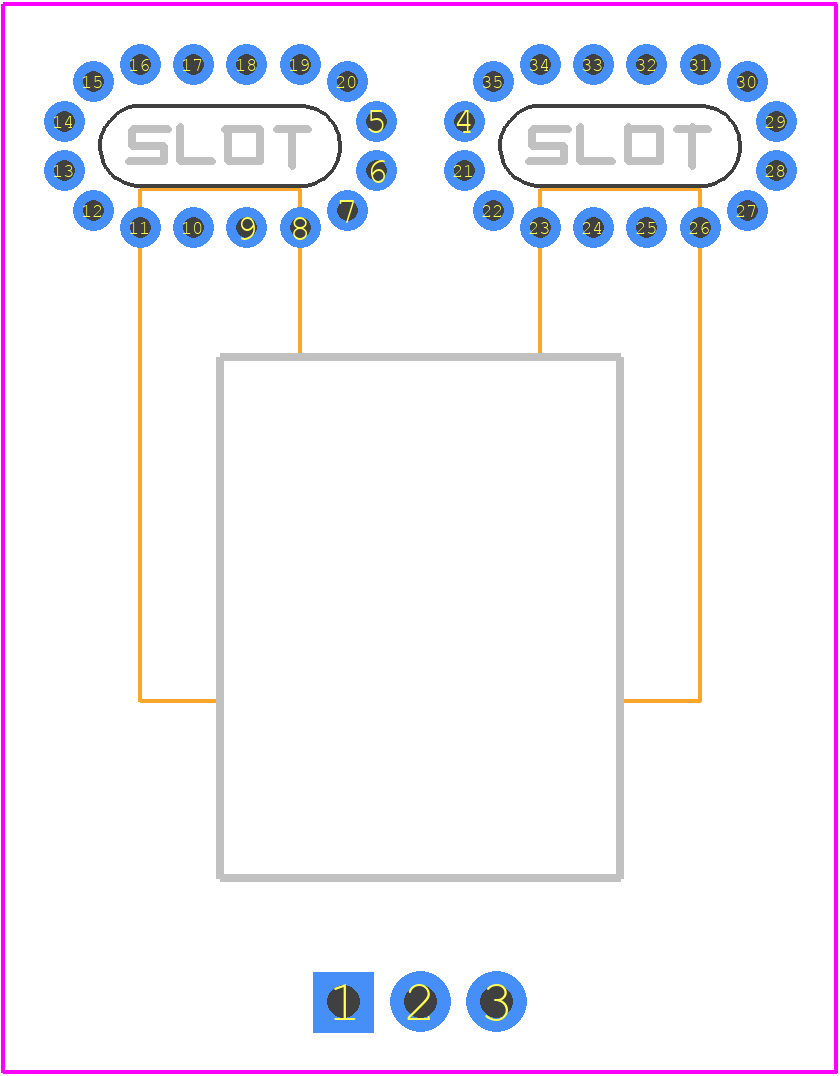

ACS772KCB-150B-PFF-T - Allegro Microsystems PCB footprint - Other - Other - PFF_2021
click to zoom
3D Models
ACS772KCB-150B-PFF-T - Allegro Microsystems - 3D model - Other - PFF_2021
click to zoom

ACS772KCB-150B-PFF-T Details

  • Manufacturer Part Number:

    ACS772KCB-150B-PFF-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-5

  • Date Of Intro:

    2018-05-14

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    10 mm

  • Body Height:

    7 mm

  • Body Length or Diameter:

    13 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    5

  • Operating Current-Max:

    15 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

ACS772KCB-150B-PFF-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS772KCB-150B-PFF-T is -40°C to 150°C.
  • To ensure accurate current measurements, make sure to follow proper PCB layout and design guidelines, use a low-impedance path for the current conductor, and minimize the distance between the device and the current-carrying conductor.
  • The recommended PCB layout for the ACS772KCB-150B-PFF-T involves placing the device as close as possible to the current-carrying conductor, using a low-impedance path, and minimizing the distance between the device and the conductor.
  • To handle EMI with the ACS772KCB-150B-PFF-T, use proper shielding, grounding, and filtering techniques, and ensure that the device is placed in a location that minimizes exposure to electromagnetic radiation.
  • The typical response time for the ACS772KCB-150B-PFF-T is 2.5 μs, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS772KCB-150B-PFF-T Overview

Use the download button to access the ACS772KCB-150B-PFF-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS77, or try a keyword search, such as Other Sensors/Transducers
