ACS772LCB-100B-SMT-T - Allegro Microsystems

Description: 200kHz, 1.5% Max Tolerance, 100 µΩ Internal Resistance Module-alternative Current Sensor for High Current and High Voltage Applications

Download ACS772LCB-100B-SMT-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACS772LCB-100B-SMT-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints

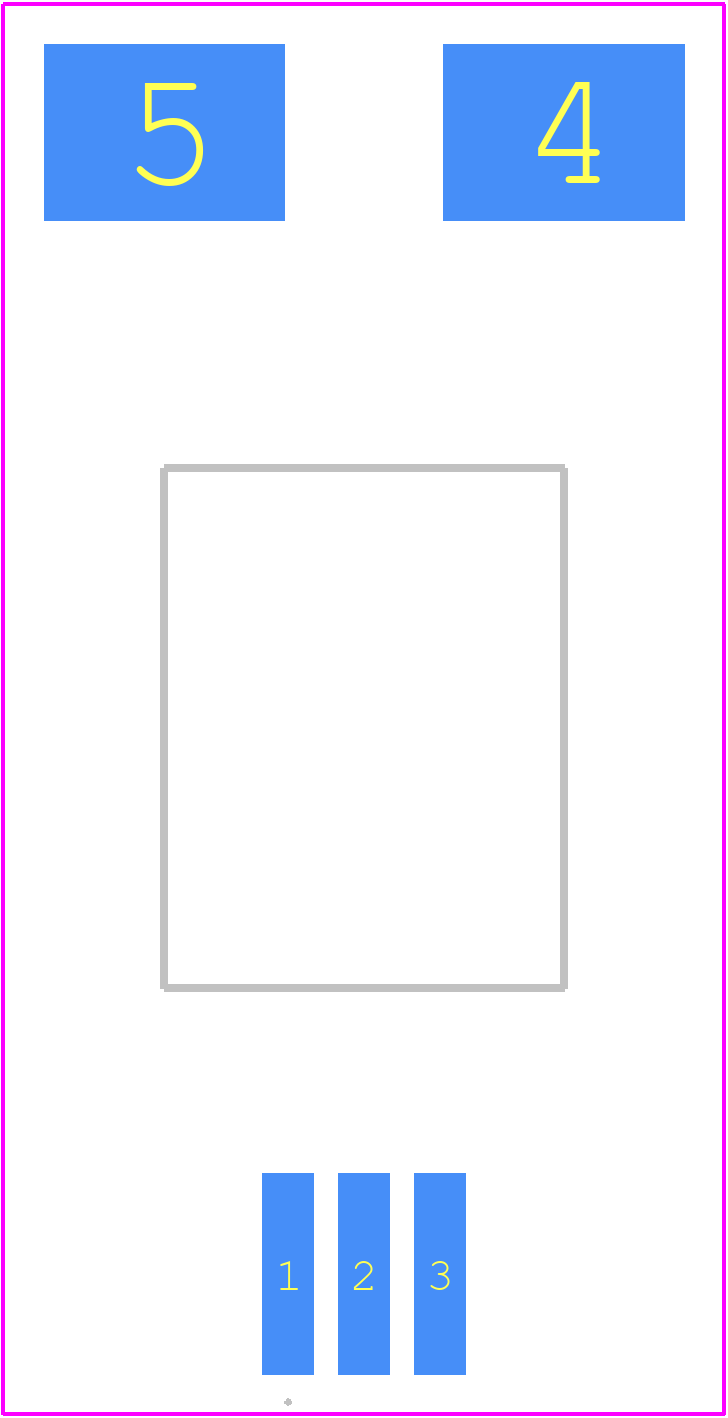

ACS772LCB-100B-SMT-T - Allegro Microsystems PCB footprint - Other - Other - ACS772LCB-100B-SMT-T
click to zoom
3D Models
ACS772LCB-100B-SMT-T - Allegro Microsystems - 3D model - Other - ACS772LCB-100B-SMT-T
click to zoom

ACS772LCB-100B-SMT-T Details

  • Manufacturer Part Number:

    ACS772LCB-100B-SMT-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-5

  • Date Of Intro:

    2019-11-07

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    10 mm

  • Body Height:

    7 mm

  • Body Length or Diameter:

    13 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS772LCB-100B-SMT-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS772LCB-100B-SMT-T is -40°C to 150°C, with a junction temperature of up to 170°C.
  • The ACS772LCB-100B-SMT-T has an internal overcurrent detection circuit that limits the output current to prevent damage to the device. It also has a fault output pin that indicates when an overcurrent condition occurs.
  • Allegro recommends a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a thermal vias to dissipate heat. The device should be placed in a location with good airflow and away from heat sources.
  • Yes, the ACS772LCB-100B-SMT-T is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6 for vibration testing.
  • The ACS772LCB-100B-SMT-T has a typical current measurement accuracy of ±1.5% over the entire operating temperature range, making it suitable for high-accuracy current sensing applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS772LCB-100B-SMT-T Overview

Use the download button to access the ACS772LCB-100B-SMT-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS77, or try a keyword search, such as Other Sensors/Transducers
